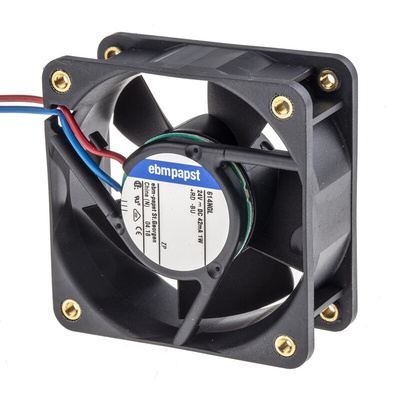

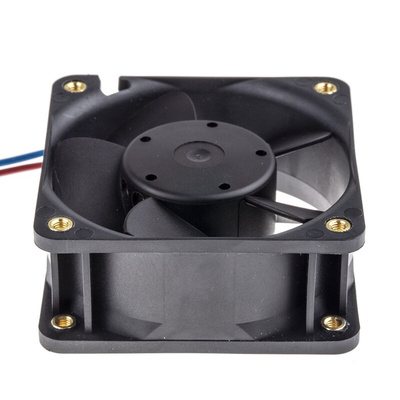

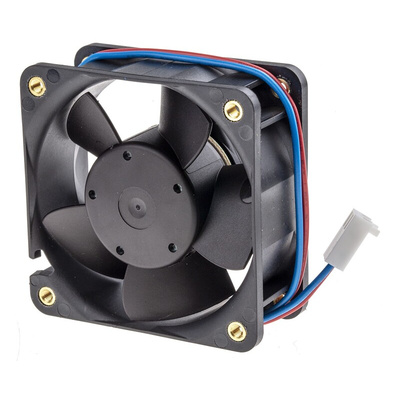

614NGL-RS0, ebm-papst, 24 V dc, DC Axial Fan, 60 x 60 x 25mm, 21m³/h, 1W, IP20, Вентилятор

ebm-papst DC Axial Fan with Inserts

Brought to you by ebm-papst, the 600N series of DC Axial Fans are compact and excellent for pc cooling purposes. The major benefit of this fan would be the plug and play feature it provides. It comes fully assembled with M3 threaded inserts and a hard wired connector, meaning it can be plugged straight into a motherboard.

Features and Benefits

• M3 threaded inserts in each corner
• IP20 Protection
• Connection lead is 313 mm (+/- 10 mm)
• Blowing over struts
• High-quality plastic housing

What is an Axial Fan?

An axial fan is a type of fan commonly used within everyday applications, such as air conditioners and computers. It causes both air and gas (depending on the application) to flow directly through it in an axial direction. Allowing the air/gas flow to be axial and both entry and exit. The most common versions tend to have fewer blades than a conventional ducted fan which have similar operations.

Do you have any finger guards available?

Absolutely, please have a look at RS Stock Number – 250-892 for a suitable finger guard, if safety is a concern.

What type of connector is fitted to this fan?

The hard wired connector is a Molex 22-01-2025, which we also stock separately, see Stock Number - 296-4934.

ebm-papst Plug'n'Play fans datasheet
