BK1737, BK Precision Digital Bench Power Supply, 35V, 3A, 1-Output, 120W, Блок питания

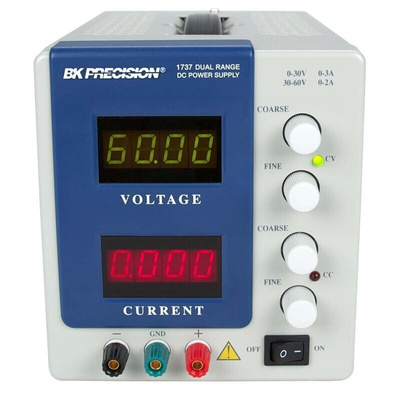

B&K Precision Model 1737 General Purpose Dual Range DC Power Source

B&K Precision model 1737 has two ranges and can output higher voltage at a lower current range or higher current at a lower voltage range. The 1737 provides a 0-30 V, 0-3 A range and a 0-60 V, 0-2 A range. Voltage and current are both adjustable with coarse and fine control knobs. Two large LED meters continuously monitor the output voltage and current. The power supply can be operated locally from the front panel or remotely through the RS-232 interface.

Low ripple and noise
Excellent regulation
Constant voltage (CV) and constant current (CC) operation
Two large, easy-to-read LED displays provide good visibility in bright or low light
LED indication for CV and CC modes
Automatic recall of last settings on power up
RS-232 interface
Isolated output
Overload protection
Reverse polarity protection

Supplied with

Power cord, instruction manual, RS-232 cable, shorting bar

B&K Precision

4 digit DC power supply,0-30V,0-3A
