BK1747, BK Precision Digital Bench Power Supply, 60V, 10A, 1-Output, 350W, Блок питания

B&K Precision Model 1747 General Purpose Dual Range DC Power Source

B&K Precision model 1747 is a general purpose dual range DC power source. It can output higher voltage at a lower current range or more current at a lower voltage range. Two 4-digit LED displays continuously monitor the output voltage and current. The power supply can be operated locally from the front panel or remotely through the RS-232 interface. The 1747 has excellent regulation and low ripple characteristics. Its mechanical configuration conserves bench space and facilitates portability. It is well-suited for a wide variety of electrical and electronics applications in service shops, engineering laboratories, production, school laboratories and the home.

Low ripple and noise
Excellent regulation
Constant voltage (CV) and constant current (CC) operation

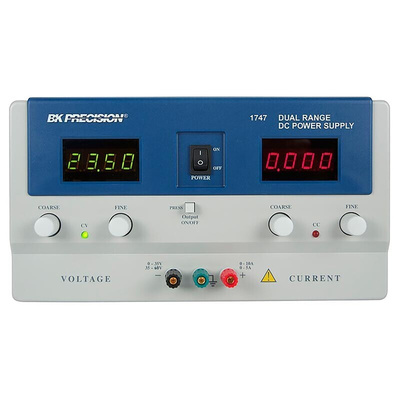

Two large, easy-to-read LED displays provide good visibility in bright or low light
LED indication for CV and CC modes
Automatic recall of last settings on power up

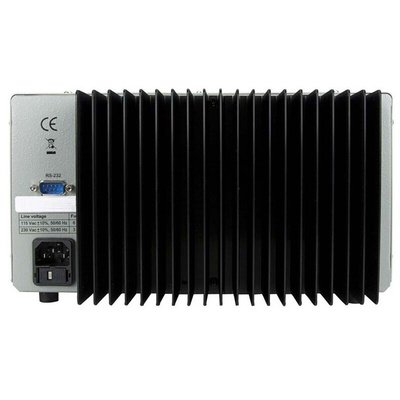

RS-232 interface
Isolated output
Overload protection
Reverse polarity protection

Supplied with

Power cord, instruction manual, RS-232 cable, shorting bar

B&K Precision

2 range power supply 30V/10A or 60V/5A

2 Range Power Supply Instruction Manual
