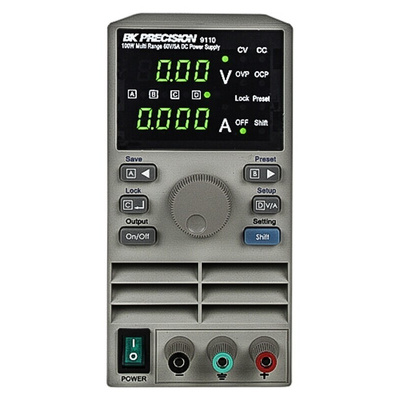

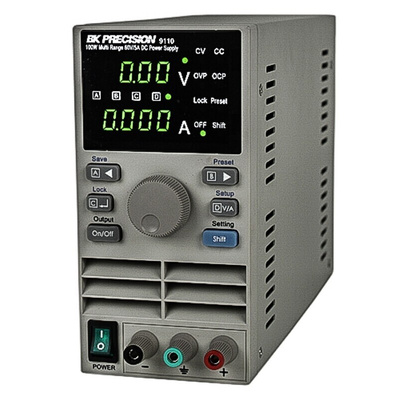

BK9110, BK Precision Digital Bench Power Supply, 60V, 5A, 1-Output, 100W, Блок питания

BK Precision DC Power Supply

The BK Precision 100W single output DC power supply that delivers an output voltage rating of 1V to 60V and a current rating of 0A to 5A. Unlike conventional power supplies with fixed output ratings, this device automatically recalculates the voltage and the current limits for each setting. This provides any V/amp combination within the rated power. By providing greatly expanded choices of maximum power V/amp combinations, the users can cut down on the number of power supplies required and free up the valuable bench space.
Supplied with:
Power cord, instruction manual.

Features and Benefits

Digitally controlled, multi-ranging output
2 bright and easy to read displays
Very compact and lightweight
Low ripple and noise
Over current protection
Over voltage protection
Over temperature protection
Store and Recall 4 x 100 groups of preset Volt/Amp values
Output ON/OFF control
Temperature controlled, variable speed fan cooling
Supply voltage rating of 110VAC to 220VAC

Applications

Production testing
Telecommunications
R&D
Service
University labs

Certifications

IEC 320
CE certified

Single output power supply ,0-60V, 0-5A Data Sheet

Single output power supply ,0-60V, 0-5A User Manual
