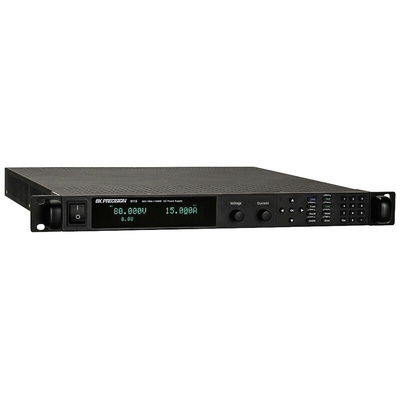

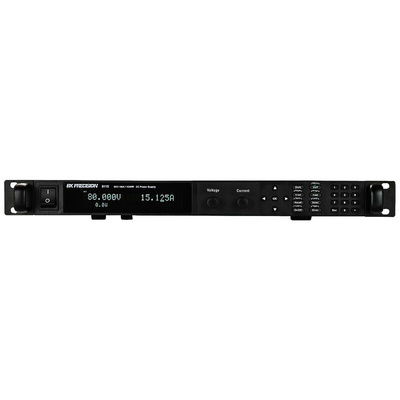

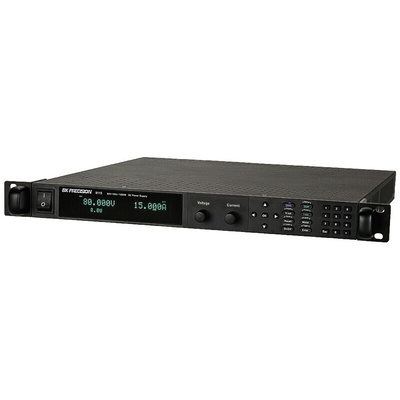

B&K Precision Model 9115 Multi Range Programmable DC Power Supply

B&K Precision model 9115 can replace several supplies on the bench or in the rack. Unlike conventional supplies with fixed output ratings, this multi-range power supply automatically recalculates voltage and current limits for each setting, providing full output power in any Volt/Amp combination within the rated voltage and current parameters. For benchtop applications, the 9115 provides a numerical keypad for direct data entry along with convenient cursors and analog style knobs to quickly make incremental voltage or current changes. System integrators benefit from the standard USB (USBTMC-compliant), RS-232, GPIB and RS-485 interfaces supporting SCPI commands.

Output rating up to 1200 W within 80 V/ 60 A
Compact, high density, 1U rackmount form factor
High programming and readback resolution of 1 mV/1 mA
Adjustable voltage rise and fall times
Sequence programming (list mode)
Store and Recall up to 100 instrument settings

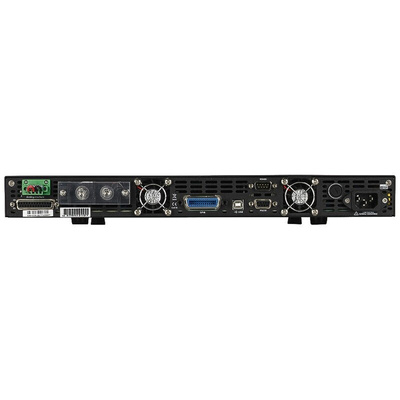

Standard USB (USBTMC-compliant), RS-232, GPIB, and RS-485 interfaces supporting SCPI commands for remote control
Analog interface with control and monitoring functions
Remote sense
Overvoltage protection (OVP), overpower protection (OPP), overtemperature protection (OTP), and key-lock function

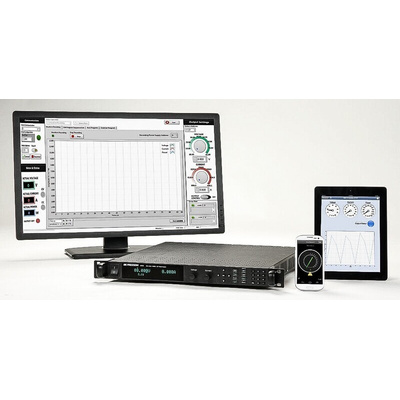

Softpanel for remote control, test sequence generation and data logging (this software integrates with Data Dashboard for LabVIEW apps enabling iOS, Android or Windows 8 compatible tablets or smart phones to remotely monitor select measurement indicators)

Supplied with

Power cord, instruction manual

B&K Precision

0-80V,0-60A,switching P/S USB RS485 GPIB Data Sheet

Multi Range DC Power Supply User Manual

9115 Multi Range DC Power Supply Programming Manual

Datasheet Series BK9115B
