BK4054B, BK Precision 4054 Arbitrary Waveform Generator, 25MHz Max, 1 μHz Min, Генератор сигналов

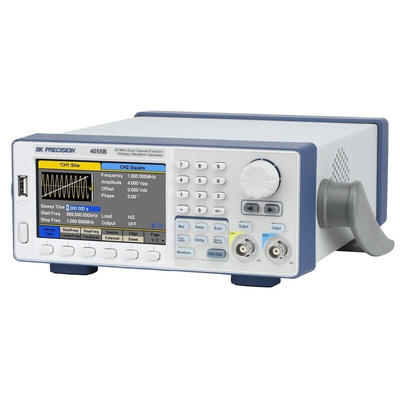

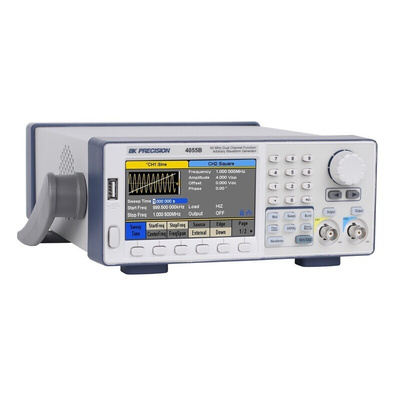

B&K Precision Series 4050 Dual Channel Function/Arbitrary Waveform Generators

B&K Precision Series 4050 dual channel function/arbitrary waveform generators generate stable and precise sine, square, triangle, pulse and arbitrary waveforms. They have easy-to-read colour displays and an intuitive user interface, with numeric keypad. Features include linear/logarithmic sweep, built-in counter, extensive modulation and triggering capabilities, a continuously variable DC offset and a high performance 14-bit, 125 MSa/s arbitrary waveform generator. The main output voltage can be varied from 0 to 10 Vpp into 50 ohms (up to 20 Vpp into open circuit) and the secondary output can be varied from 0 to 3 Vpp into 50 ohms (up to 6 Vpp into open circuit).

14-bit, 125 MSa/s, 16k point arbitrary waveform generator
Large 3.5-inch LCD colour display with waveform preview
Linear and logarithmic sweep
AM/DSB-AM/ASK/FM/FSK/PM/PWM modulation functions
Variable DC offset
Adjustable duty cycle
Two independent channels with individual output On/Off buttons
Internal/external triggering
Gate and burst mode
48 built-in predefined arbitrary waveforms
Store/recall up to 10 instrument settings and 10 arbitrary waveforms
Built-in counter

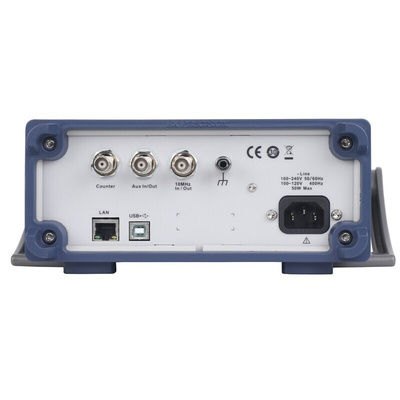

USB device port (USBTMC-compliant) with front panel USB host port
SCPI-compliant command set
Short circuit protection on outputs

Supplied with

Getting started manual, full instruction manual on CD, AC power cord, USB type A-to-type B cable, certificate of calibration

25 MHz dual CH function/arbitrary gen

Datasheet

Manual
