RS PRO Straight 50Ω RF Adapter SMA Socket to N Socket 11GHz, Переходник

8782390
Производитель: RS PRO
Цена за шт.
9153.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

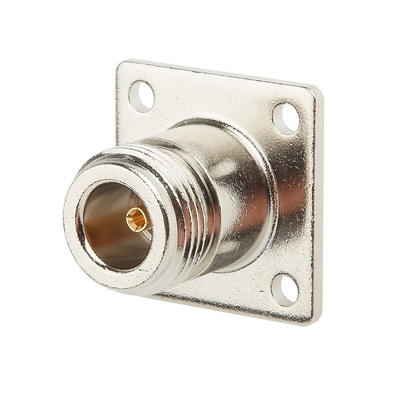

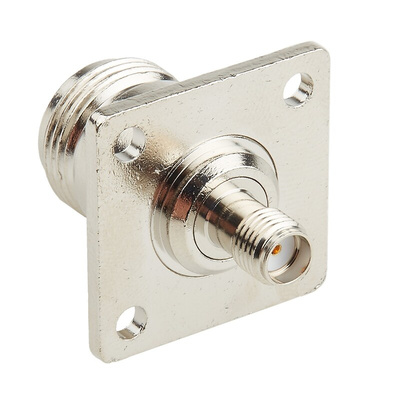

RS 50 Ohm SMA Jack to N Series Flanged Jack RF Coaxial Adapter

From RS PRO, this flanged adapter connects an SMA socket connector to an N-type coaxial connector. With a nickel-plated body and a durable screw-in flange, this adaptor is easily mounted as a feedthrough connector in panels and equipment housing.

This robust and reliable adapter has a mechanical interface according to MIL-STD-348A, and so it suitable for Department of Defense approved equipment and applications.

With excellent performance characteristics, this feedthrough SMA to Type N connector can easily couple corresponding cable assemblies.

Features and Benefits

• SMA to N Type RF Connector
• Gold contact plating for excellent signal connectivity
• Robust nickel-plated brass body
• 25.4mm square flange with 4 x 3.2mm diameter mounting holes

Applications

The SMA, or Subminiature A connector, are used in radio frequency applications up to 18 GHz, and are typically found in wi-fi systems. The N-type connector is a larger RF connector designed for higher power applications for broadcasting and communications equipment, such as antennas and base stations. This inter-series adapter allows interfacing between both types of cabling, which is useful for integrating different equipment in lab or field applications.

Why RS PRO?

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Our range of connectors contains plugs, sockets and tool solutions to suit any installation.

Техническая спецификация
pdfDimensional Drawing
pdfRS Pro Datasheet
Адаптер типа A:
SMA
Адаптер типа B:
N
Длина:
31мм
Импеданс:
50Ом
Материал контактов:
Бериллиевая медь
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Покрытие корпуса:
Никель
Рабочая частота:
11ГГц
Род A:
Female
Род B:
Female
Тип адаптера:
SMA Jack to Type N Jack
