RS PRO Straight 50Ω RF Adapter SMB Plug to BNC Plug 4GHz, Переходник

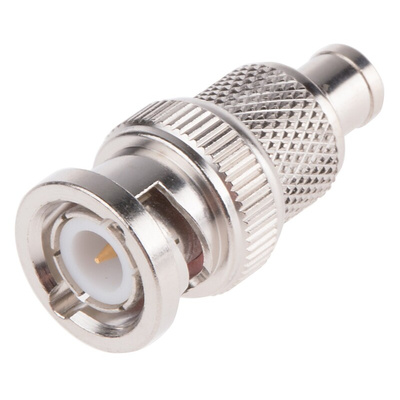

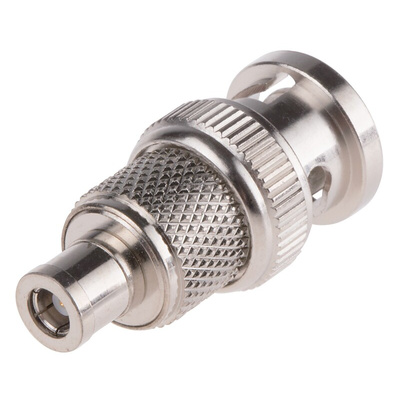

RS PRO Straight 50 Ω RF Adapter SMB Socket to BNC Plug 4 GHz

This radio frequency (RF) adaptor from RS PRO allows for quick and easy conversion from a server message block (SMB) cable to a Bayonet Neill-Concelman (BNC) cable. The male-to-male adaptor is suitable for attaching to the BNC socket on a piece of equipment, allowing an SMB coaxial cable with a socket end to be attached to it. The gold-plated contacts ensure a good connection, keeping signal attenuation to a minimum. The small size of this adaptor makes it suitable for use in confined spaces, such as behind a wiring panel.
The adaptor is suitable for frequencies up to 4 GHz, making it suitable for audio signals and standard definition video (PAL or NTSC) as well as 2.4 GHz wireless LAN communications and other radio signals up to the ultra-high frequency (UHF) band. As a stand-alone connector, it is easily fitted with no mounting required.

Features and Benefits

• SMB plug to BNC plug adapter
• Type A is a female SMB adapter
• Type B is a make BNC adapter
• Straight body orientation
• Nickel body plating
• Beryllium copper contact material
• Gold contact plating
• Impedance of 50 Ω
• Length of 30.5 mm
• Operating frequency of 4 GHz

Dimensional Drawing

RS Pro Datasheet
