RS PRO, jack Flange Mount SMA Connector, 50Ω, Solder Termination, Straight Body, Разъем

RS PRO 50 Ω Straight Flange Mounting, SMA Connector, Jack, Coaxial

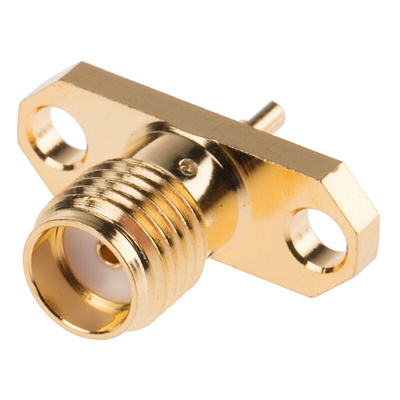

This SMA (SubMiniature version A) connector from RS PRO is an ideal solution for joining coaxial cables. Its compact dimensions allow it to be easily integrated into most circuits. It's suitable for a wide range of applications, including WiFi equipment or signal transfer applications.
The gold-plated body is highly durable and resistant to corrosion, making it a good choice for use in demanding environments. The contacts are made of gold-plated beryllium copper for good conductivity and durability, ensuring a reliable connection over time.
To save you time and effort during installation, it features a snap-on/snap-off coupling mechanism that allows you to quickly connect and disconnect cables. It also has a flange for quick and easy mounting.

Features and Benefits

• Straight body orientation
• Gold body plating
• No bulkhead
• Coaxial cable type
• SMA (SubMiniature version A) coaxial connector type
• Beryllium copper contact material
• Gold contact plating
• Female gender
• Impedance of 50 Ω
• Snap-on mating type
• Flange mounting type
• Operating frequency of 18 GHz
• Standard size
• Solder termination method
• Voltage rating of 500 V

Dimensional Drawing

RS Pro Datasheet
