J60026A0000, Telegartner TOC Series Male RJ45 Connector, Panel Mount, Cat6a, Разъем

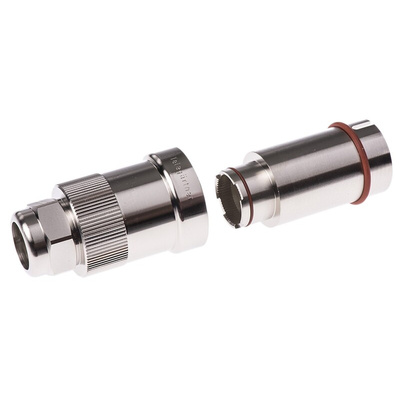

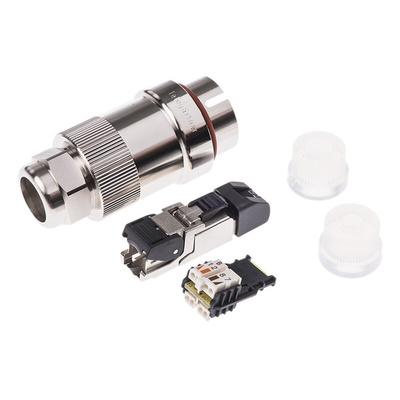

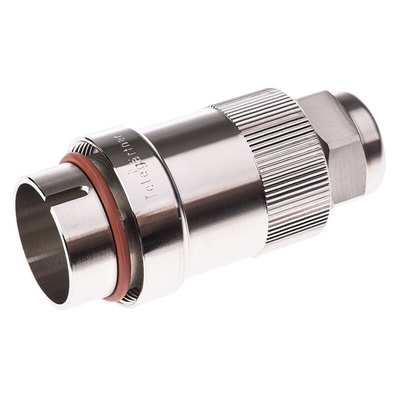

Telegärtner DataVoice TOC IP68 Outdoor Cat 6 RJ45 MFP8 T568B Plug Set

TOC IP68 outdoor Cat 6 RJ45 MFP8 T568B plug set suitable for use in harsh environment machine and plant engineering applications with a temperature range of -40 to +85°C. Installation requires just one turning movement to lock and seal the connection. This cat 6 RJ45 RJ45 MFP8 T568B plug set is suitable for10 Gigabit ethernet transmission acc. to IEEE 802.3an and PoE+ acc. to IEEE 802.3at and has a nickel plated brass housing, a clear PC UL94 V0 contact housing, 360° shielding and accepts a cable insulation diameter of 1.0 to 1.6mm and cable outer diameter of 4 to 9.5mm. An IP68 bulkhead plug protective cap is available separately, please see stock number 878-2498

Standards

Connector standard to IEC 60603-7-51 (500 MHz)
Category 6A: ANSI/TIA/EIA-568-C.2
Category 6: ISO/IEC 11801, DIN EN 50173-1
IP68 protection to IEC 60529

Telegärtner DataVoice TOC IP68 Outdoor RJ45 Couplers, Plug Sets and Bulkhead Sets

TOC IP68 Cat6 MFP8 RJ45 plug set
