J60023A0000, Telegartner TOC Series Female RJ45 Connector, Panel Mount, Cat6a, Разъем

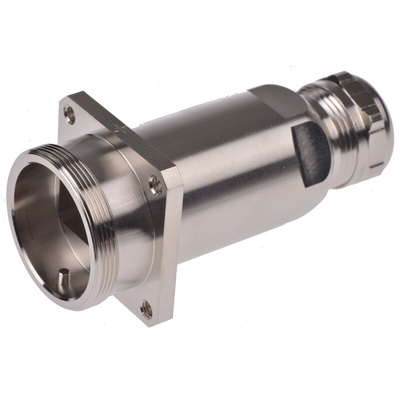

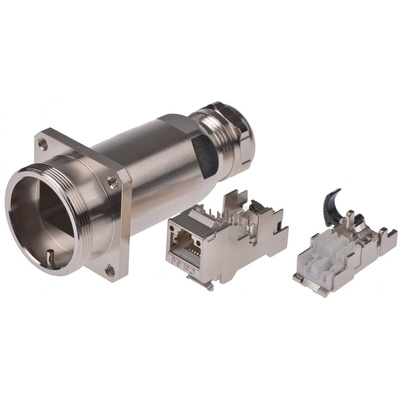

Telegärtner DataVoice TOC IP68 Outdoor Cat 6 RJ45 AMJ-S Module T568B Bulkhead Outlet Set

TOC IP68 outdoor cat 6 RJ45 AMJ-S module T568B bulkhead outlet set suitable for use in harsh environment machine and plant engineering applications with a temperature range of -40 to +85°C. Installation requires just one turning movement to lock and seal the connection. This AMJ-S module T568B Cat 6 bulkhead outlet set is suitable for10 Gigabit ethernet transmission acc. to IEEE 802.3an and PoE+ acc. to IEEE 802.3at and has a nickel plated brass bulkhead outlet housing, a white PC UL94 V0 insulation body and 360° shielding. An IP68 bulkhead protective cap (stock number 878-2494) and a 38mm & TH35 bracket (stock number 878-2450) are available separately

Standards

Connector standard to IEC 60603-7-51
Category 6A: ANSI/TIA/EIA-568-C.2
Category 6: ISO/IEC 11801, EN 50173-1
IP68 protection to IEC 60529

Telegärtner DataVoice TOC IP68 Outdoor RJ45 Couplers, Plug Sets and Bulkhead Sets

TOC IP68 Cat6 RJ45 AMJ-S bulkhead outlet
