05710007LXP, Littelfuse 30A Panel Mount Fuse Holder for 10 x 25mm Fuse, 1P, 600V ac, Держатель предохранителя

Littelfuse 571 Series Panel Mount Fuse Holder

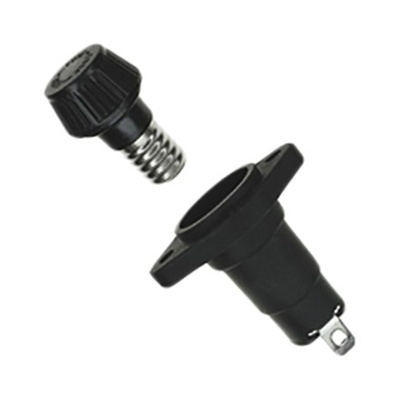

From Littelfuse, the 571 series of durable, fully enclosed fuse holders designed to accommodate midget style fuses. The panel mount fuse holders are supplied in two parts, the fuse cap, and the fuse holder. Mounting is simple, once the desired panel cut-out is made the fuse holder is pushed into the hole and securely retained in the panel with two fixing screws. An appropriately sized fuse (30 amp max) is inserted into the holder and the cap is screwed on.

Manufactured from high-grade thermoplastic materials the 571 series of panel mount fuse holders are robust and reliable. With their simple design, they require no specialist tooling making termination easy. Suitable for maintenance, repair, and new designs.

Standard or Watertight ?

Depending on your application you may require a fuse holder with or without extra protection. The Littelfuse 571 series offer fuse holders in standard or watertight (must be front panel mounted)

• Part No’s with a suffix L are Standard fuse holders
• Part No’s with a suffix LXP are watertight fuse holders

Features and Benefits

• 30 amp maximum
• 600 volt
• Robust and reliable
• Compact design
• Black thermoplastic body
• UL94 V-0 flammability rating
• Tin plated brass solder / QQ terminals
• Accommodates 13/32 x 1 midget style fuses
• Standard and watertight versions

Applications

Midget fuses and inline fuse holders are used to protect a circuits cabling from the excessive current that could lead to damage or even electrical fire. In-line panel mount fuse holders are used in a wide range of electrical and electronic applications. Some of the most common are

• Electrical appliances and devices
• Motors
• Inverters
• Circuit breakers
• Switches and relays
