01500274Z, Littelfuse 10A Inline Fuse Holder for 5 x 20mm Fuse, 250V ac, Держатель предохранителя

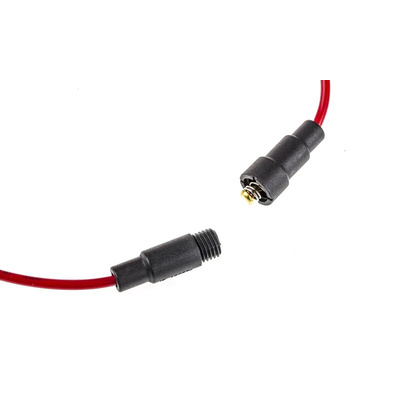

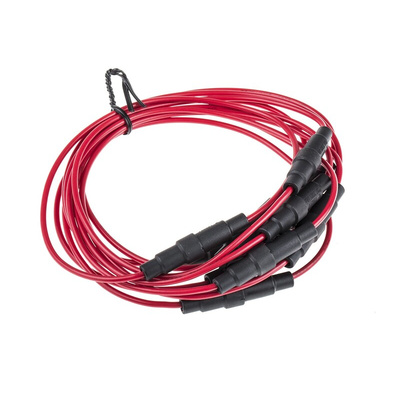

Littelfuse 150 Series In-line Fuse Holders 5x20mm

From Littelfuse, the 150 series of in-line fuse holders designed for housing 5x15mm (2AG) and 5x20mm cartridge fuses. With a robust screw locking mechanism, the fully enclosed fuse holders can withstand 10lb’s of pull making them safe and secure. In-line fuse holders enable easy access for the inspection of or replacement of damaged or blown fuses.

The 150 series of in-line fuse holders are manufactured from high-quality UL94 V-0 nylon body and brass contacts. Each holder includes pre-terminated 13 inches of (330mm) red 16 AWG stranded tails for easy connection. Littelfuse 150 in-line fuse holders are an economical and versatile fuse holder for everyday environments. Ideal for electrical maintenance, repair or new designs.

Features and Benefits

• Robust and reliable
• Single fuse holder
• Compact design
• Black nylon body UL94 V-0
• A simple threaded coupling mechanism
• 16 AWG red wire leads
• Brass terminals
• Wide temperature range -40°C to + 80°C
• Withstands 10lbs. pull-on connecting leads
• Accommodates both 5 x 15 mm and 5 x 20 mm glass cartridge fuses

Applications

Cartridge fuses and inline fuse holders are used for protecting a circuits cabling from the excessive current that could lead to damage or even an electrical fire. In-line fuse holders are used in a wide range of electrical and electronic applications. Some of the most common are

• Electrical appliances and devices
• Portable electronics
• LCD Monitors
• DVD players
• Game systems
• Laptops
• Printers
• Battery packs
• Switches and relays
• Automotive
