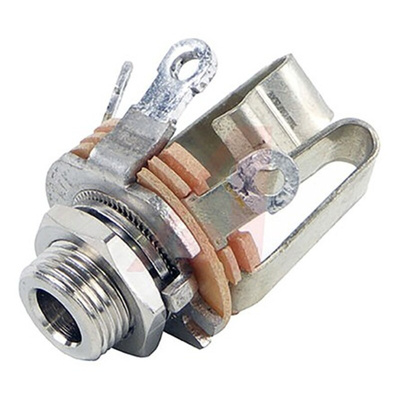

C12BX, Switchcraft Jack Connector 5.34 mm Chassis Mount, Panel Mount Stereo Socket, 3Pole 1A

8786910
Номер производителя: C12BXПроизводитель: Switchcraft
Цена за шт.
3143.40 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

1/4 in. Cable Mount Plugs and Sockets

From Switchcraft, a selection of high performance, rugged jack plugs and sockets. These cable mount plugs and corresponding sockets are ideal for use with electronic instruments and amplifiers.

The cable-mounted jack plugs comprise machined brass handles, with one piece tip rods, solder tags and heavy-duty cable clamps, ensuring reliable electrical continuity, shielding and secure strain relief. They also include high temperature insulators.

The 2 and 3-pole high retention standard sockets mount into 3/8 in. holes in panels up to 5/32 in. thick. The 3-pole standard socket includes a double closed circuit in addition to the tip, ring and sleeve connections. While the 2-pole fully shielded long reach socket virtually eliminates hum pickup and is ideal for guitar or speaker connections. It allows for front mounting into a panel of up to 1 1/4 in. thick, through a 15/32 in. mounting hole. All models are highly reliable and excellent quality.

The Switchcraft selection of Cable Mount Plugs and Sockets includes:

• 205-5440 is a two pole standard panel mount socket
• 208-3849 is a three pole standard panel mount socket
• 218-0827 is a two pole cable mount jack plug
• 218-0833 is a three pole cable mount jack plug
• 298-8160 is a two pole long reach panel jack socket
• 705-1484 is a three pole long reach panel jack socket
• 878-2325 is a three pole long reach cable mount jack plug
• 876-8684 is a two pole female cable mount jack socket
• 876-8688 is a two pole female cable mount jack socket
• 878-4728 is a two pole male cable mount jack plug
• 878-4850 is a three pole male cable mount jack plug
• 878-6910 is a three pole female cable mount jack socket

Техническая спецификация
pdfDatasheet
Материал контактов:
Медный сплав
Материал корпуса:
Пластик
Нет полей/путей:
3
Номинал тока:
1A
Номинальное напряжение:
25 В пост. тока
Ориентация корпуса:
Прямой
Покрытие контактов:
Никель
Размер:
5.34 mm
Род:
Female
Тип:
Stereo
Тип монтажа:
Монтаж на шасси, Панельный монтаж
