J80060A0000, Telegartner Connection Module, DataVoice VM-Pro Series,, 8 Way Screw Termination, Разъем

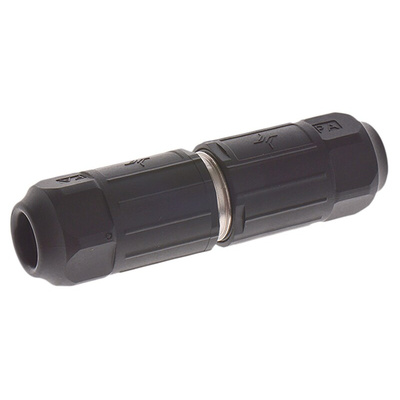

Telegartner DataVoice VM-Pro 8-8 Class F Connection Module

DataVoice VM-Pro 8-8 Class F_A (1000 MHz) IP67 shielded connection module suitable for 100, 250, 500 and 1000 MHz installation and 8 wire patch cables. This DataVoice VM-Pro 8-8 IP67 connection module uses IDC termination technology and is able to connect 4 pair shielded and unshielded cables with solid and stranded conductors with a wire size range of 27-22 AWG and an outer diameter of 5.5 to 9.0mm. The compact size of this DataVoice VM-Pro 8-8 IP67 connection module enables it to be used in confined spaces, specialized tooling is not needed for connection and the module can be reconnected up to 4 times. The insulated construction, mechanical stability and IP67 rating make this versatile connection module ideal for use in laying and repairing cables in residential and industrial buildings.

Standards

7_A Cat
Suitable for Class F_A acc to ISO/IEC 11801
EMC compatible acc. to DIN EN 61000-6-1 and DIN EN 6100-6-2
Suitable for PoE+ acc to IEEE 802.3at

Standards

Housing PA UL94 V0

Telegartner DataVoice Range

DataVoice VM-Pro 8-8 Class F Connection Module

Datasheet
