J00026A4001, Telegartner MFP8 Series Male RJ45 Connector, Cable Mount, Cat6a, Разъем

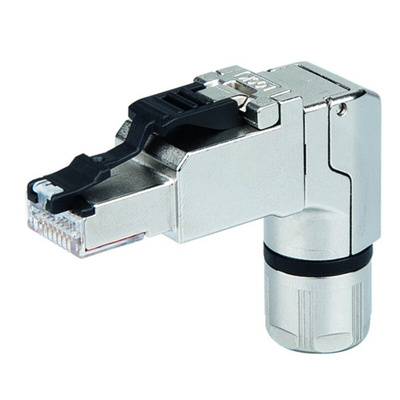

Telegartner RJ45 Connector

The Telegartner MFP8 series Cat.6A male RJ45 connector is a cable mount fully shielded plug. This plug is designed for fast and reliable cable links repair and connection of peripheral devices in the existing networks. This male connector has cable entry from four directions in 4 x 90° steps, standardised plug interface supports Power over Ethernet Plus (PoE+). It can be used to make connections with all standard cable types with transfer rates of up to 10 Gigabit Ethernet/s (10GBase-T). Also, the use of a full range of cable types with solid or stranded conductors from AWG24/1 to 22/1 and AWG27/7 to 22/7 (refer to datasheet for details) makes it ideal for various applications. The housing of this plug is made from Die-cast zinc and has 360° shielding enabling secure and reliable data transmission in industrial environments even with outside interference.
Additional information
More features of these MFP8 Cat.6A field assembly RJ45 plugs include a long release latch to make insertion and withdrawal easy in confined spaces and a pre-assembled protection cap to protect contacts against dirt and damage.

Features and Benefits

4P4C number of ways
Contact material is spring steel
Contact plating is gold over nickel
Excellent quality
Highly reliable

Applications

Data centres
Home cabling systems
Industry systems
Office buildings

Certifications

EN 60603-7-51
IP20 rated

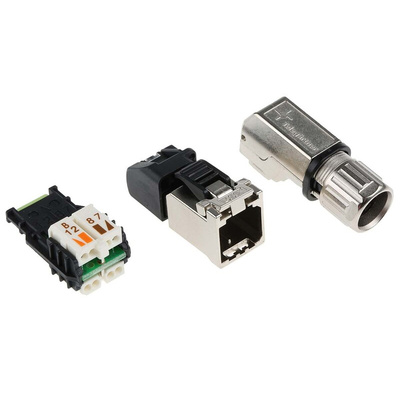

MFP8-4x90 Cat.6A RJ45 Shielded Field Assembly Plug

MFP8-4x90 Cat.6A RJ45 Shielded Field Assembly Plug
