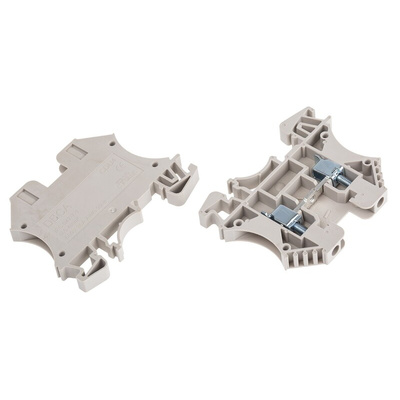

RS PRO DIN Rail Terminal Block, 4mm², Single-Level, Screw Termination

Screw Clamp Terminal Blocks

DIN rail mounted screw clamp terminal blocks
Suitable for a broad range of cross-section and wire types
Wires can be connected without any special preparations
Easy to handle and safe to connect
Excellent vibration resistance
High reliability and maintenance free
Very low contact resistant
Easy mounting and dismounting from DIN rail

Note

End Plate (878-7540) is suitable for use with:

878-7487: Screw Clamp Terminal Blocks, 2.5sq.mm
878-7496: Screw Clamp Terminal Blocks, 2.5sq.mm Black
878-7499: Screw Clamp Terminal Blocks, 2.5sq.mm Blue
913-1207: Screw Clamp Terminal Blocks, 2.5sq.mm Orange
913-1201: Screw Clamp Terminal Blocks, 2.5sq.mm Red
878-7519: Screw Clamp Terminal Blocks, 4sq.mm
913-1210: Screw Clamp Terminal Blocks, 4sq.mm Blue
878-7534: Screw Clamp Terminal Blocks, 6sq.mm
913-1213: Screw Clamp Terminal Blocks, 10sq.mm

RS PRO DIN Rail Terminal, 22 to 8 AWG, 800 V

If you need a terminal block for your electrical wiring that's compatible with industry-standard fittings, use this RS PRO screw clamp terminal. It fits DIN rails, so you can use it with your existing set-up to extend or upgrade your current electrical system.

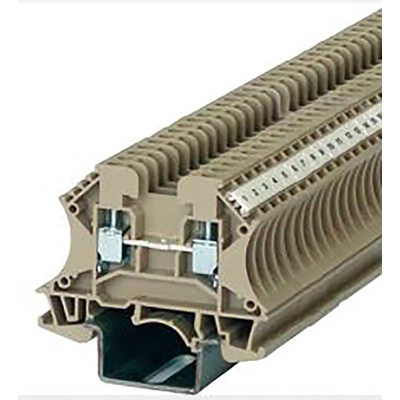

This terminal block is easy to install. Simply snap it into place on a standard DIN rail. The screw clamp keeps terminated wires fixed securely in place and requires only a standard screwdriver to attach.


The block fits a wide range of wire sizes from 22 to 8 American Wire Gauge (AWG), making this a versatile product. The high voltage rating of 800 V means it can safely handle a strong electrical current, so you can use it for large-scale electrical systems like those in commercial and industrial buildings.

Features and Benefits

• Cable cross-sectional area (CSA) of 4 mm²


• Current rating of 32 A International Electrotechnical Commission (IEC), 35 A Underwriters' Laboratories/Canadian Standards Association (UL/CSA)


• Single level


• CDU 4 series


• Screw termination method


• Voltage rating of 800 V


• Wire size of 22 to 8 American Wire Gauge (AWG)

RS Pro Datasheet
