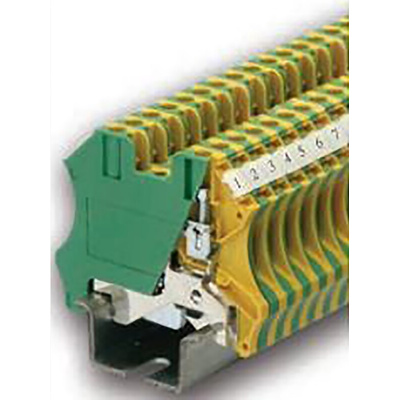

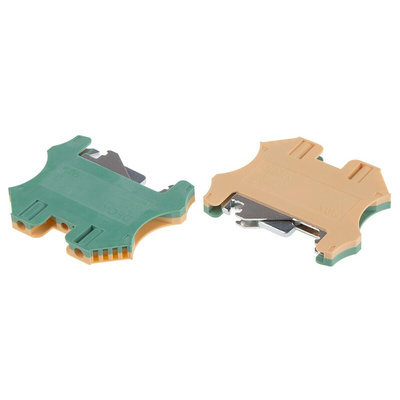

RS PRO 2-Way DIN Rail Earth Block, 0.5 to 2.5mm², 26 → 12 AWG Wire, Screw, Блок заземления

RS PRO 2 Way Screw DIN Rail, 56.7 mm Length 26 → 12 AWG

Looking for a versatile and easy-to-use earth terminal block? This screw-clamp terminal block from RS PRO is suitable for use with a wide range of wire types and cross-sectional areas. Earth terminals are commonly used for connection to an external conductor, for protection against electric shock in the event of a fault.
This terminal block allows you to connect wires without any special preparation, using simple and secure screw connections. It can be easily clipped to a DIN rail and it unclips just as easily. Once installed, this reliable component requires little in the way of maintenance and its vibration-proof connections mean it will withstand use in tougher industrial environments.
The product is approved by Underwriters Laboratories (UL) and the Canadian Standards Association (CSA) as a safe and effective terminal block. The housing is coloured green and yellow so you can easily identify it as an earth terminal.

Features and Benefits

• Cross-sectional area (CSA) of 0.5 to 2.5 mm²
• Green/yellow colour
• Compatible with DIN rails
• Height of 5.8 mm
• Length of 56.7 mm
• Width of 46 mm
• Two ways
• Screw termination method
• Wire size of 26 to 12 American Wire Gauge (AWG)

RS Pro Datasheet
