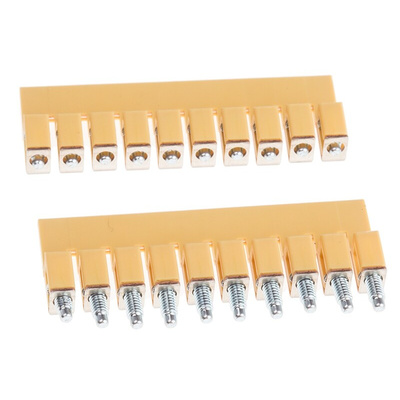

RS PRO Jumper Bar for Use with Screw Clamp Terminal Block

RS PRO Jumper for Screw-clamp Terminal Block

Looking to make permanent cross-connections between different terminal blocks in circuits? Using this cross jumper bar is much quicker and easier than physically wiring multiple points together, and it also has clamping screws to secure the connections safely and reliably.

This 10-way jumper bar is specifically designed for creating cross-connections between terminal blocks. It can be easily cut down to your required size, making it suitable for multiple different use cases, too. Adding to this versatility is a broad effective temperature range of -40℃ to +105℃.

Besides passing our own RS PRO testing process, this component is CSA-certified for general safety and sustainability, and the PA 66 nylon material has a UL94 V-0 rating for fire safety. This jumper bar is often used in crucial electronics applications such as circuit boards, control panels and motors.

Features and Benefits

• Jumper Bar
• Current rating of 32 A
• Clamping Screw of M2.6
• Torque of 3.5 to 6 lbs
• Made of PA66 nylon
• Yellow in colour
• UL94V-0 rating, for fire safety
• Operating temperature range of -40℃ to +105℃
• Net weight of 8.1 g (per piece)
