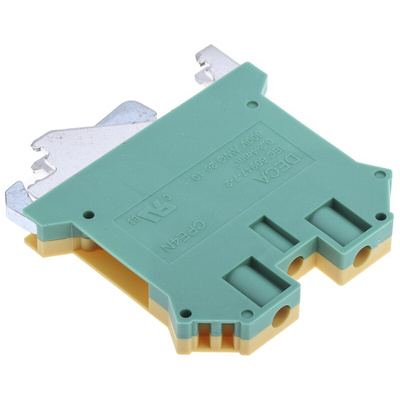

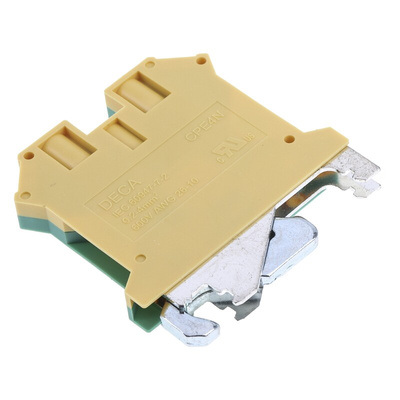

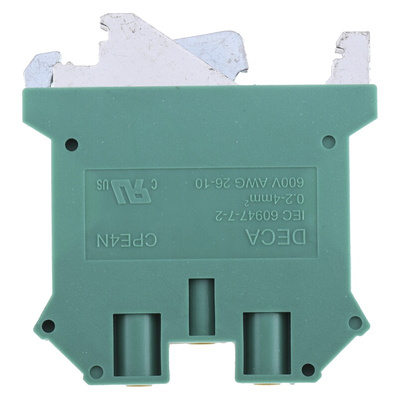

RS PRO 2-Way DIN Rail Earth Block, 0.2 to 4mm², 26 → 10 AWG Wire, Screw, Блок заземления

Mini Screw Clamp Terminal Blocks

Mini DIN rail mounted screw clamp terminal blocks
Suitable for a broad range of cross-section and wire types
Wires can be connected without any special preparations
Easy to handle and safe to connect
Excellent vibration resistance
High reliability and maintenance free
Very low contact resistant
Easy mounting and dismounting from DIN rail

RS PRO 2-Way Screw DIN Rail, 42.8 mm Length, 26 to 10 AWG

Need a way to keep your electrical connections grounded? Use this RS PRO mini DIN rail earth block terminal. It's easy to install and remove, and its small dimensions make it suitable for use in applications where space is limited.


The terminal has screw clamps that let you make secure connections easily and quickly, without the need for any specialised preparation. Its very low contact resistance ensures high-quality transmission for a strong, reliable signal. It also offers excellent resistance to vibration, making it virtually maintenance-free and suitable for use in a variety of industrial applications.


This terminal complies with Restriction of Hazardous Substances (RoHS) standards, so it contains only trace amounts of any harmful materials. You can use this type of terminal block for earthing applications in tight spaces.

Features and Benefits

• Cable cross-sectional area (CSA) of 0.2 to 4 mm²


• Green/yellow colour


• DIN rail earth block type


• Dimensions of 42.8 (length) x 45.3 (width) x 6.2 mm (height)


• Two ways


• Screw termination method


• Wire size of 26 to 10 American Wire Gauge (AWG)

RS Pro Datasheet
