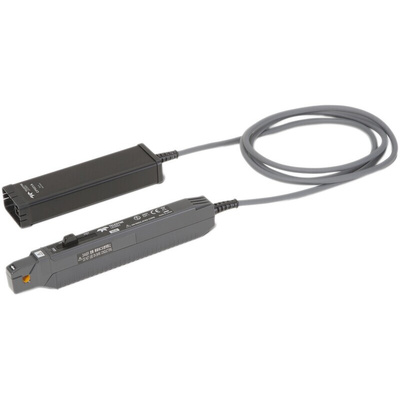

Teledyne LeCroy CP031A Oscilloscope Probe, Probe Type: AC/DC 100MHz

Teledyne LeCroy Current Probe

The Teledyne LeCroy 1.5m current probe is a state of the art device that does not require the breaking of a circuit or the insertion of a shunt to make accurate and reliable current measurements. Based on a combination of Hall Effect and transformer technology, this current probe is ideal for making accurate AC, DC, and impulse current measurements.
Note:
The CP030 (801-4858 ) andCP031 (724-0911 ) are compatible with LeCroy X-stream oscilloscopes running firmware version 4.3.1.1 or greater. Their minimum sensitivity is 10mA/div compared with 1mA/div for CPO30A (878-7604 ) and CPO31A (878-7607 ). The maximum conductor size for these four models is 5mm OD. CP150 (801-4855 ) and CP500 (724-0918 ) have minimum sensitivity 100mA/div and maximum conductor size 20mm OD. Teledyne LeCroy current probes have a small form factor that makes probing easier on a crowded compact board.

Features and Benefits

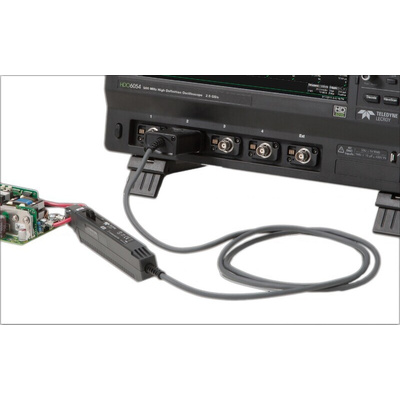

ProBus active probe interface with automatic scaling in A/div
Autozero and degauss capabilities built-into instrument’s user interface
30 Arms continuous current
50 Apeak current
100MHz bandwidth
1mA/div sensitivity
Compatible with the DSC015

Applications

Switching power supplies
Motor drives
Electric vehicles
Uninterruptible power supplies

Certifications

CAT I

Current Probes Fact Sheet

Current Probes Data Sheet

CP030/CP030A CP031/CP031A Current Probes User Manual
