HDO4K-FLEXRAYBUS TD, Teledyne LeCroy FlexRay Trigger & Decode Oscilloscope Software for Use with HDO4000 Series, Version 3.0, Программное обеспечение

Teledyne LeCroy HDO4000 FlexRay Trigger and Decode Option HDO4K-FLEXRAYBUS TD

Teledyne LeCroy HDO4K-FLEXRAYBUS TD is a FlexRay trigger, decode and physical layer test package. It adds a unique set of tools to a HDO4000 oscilloscope, simplifying designing and debugging FlexRay systems. The powerful internal FlexRay trigger locates specific IDs or messages and the unique overlay shows decoded data directly on top of the physical layer signal. The eye diagram and timing measurements quickly locate physical layer problems. Teledyne LeCroy's integration of trigger, decode and physical layer testing shortens FlexRay testing time.

The most comprehensive oscilloscope-based FlexRay solution
Complete FlexRay trigger decode and physical layer test in one instrument
Triggering and decoding of FlexRay protocol version 3.0
Eye diagram mask testing with error location
Physical layer measurement parameters for Propagation Delay, Asymmetric Delay, Truncation and Jitter
Supports 2.5, 5, and 10 Mb/s FlexRay signals

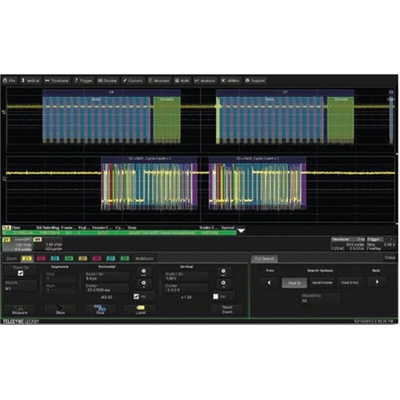

Easily view the decoded signals with an intuitive colour-coded decode overlay
Supports triggering for: Frame ID (Static and Dynamic), Frame Cycle Count, Frame Qualifiers, Symbols, Errors
Convenient table display with quick "zoom to byte" capability
Quick Search capability for specific message packets

HDO4000 High Definition Oscilloscopes Data Sheet
