Teledyne LeCroy HDO4000 LIN Bus Trigger and Decode Option HDO4K-LINBUS TD

Teledyne LeCroy LINbus trigger and decode option HDO4K-LINBUS TD provides full support for LIN 1.3, 2.x and J2602. It ensures trigger and decode functionality, whatever version of LIN is in use. Triggering provides full capability on any event with completely definable Message ID and DATA triggers, or flexible Error Frame triggering. Patented software algorithms deconstruct the waveform into protocol decode information, then overlay the decoded data on the waveform.

LIN 1.3, 2.x, J2602 supported
Powerful and flexible triggering, including triggers for: Break (Start of Message),Message ID, Message ID + DATA, Error Frame
Powerful conditional DATA triggering
Error Frame triggering supports multiple error frame types: Checksum, Header Parity, Sync Byte
Decode is performed quickly, even on long records, using advanced software algorithms
Hexadecimal decodes

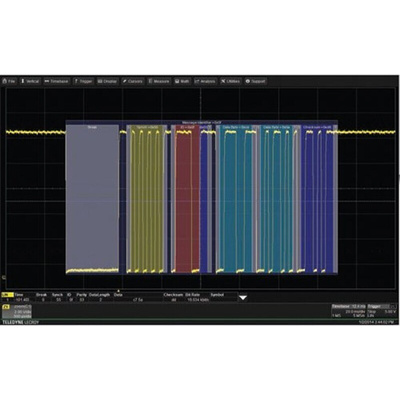

Easily learn the LIN protocol with intuitive colour-coded decode overlay
Convenient table display with quick "zoom to message" capability
Quick Search capability for specific message packet
