103H7823-1740, Sanyo Denki SANMOTION 103H7 Series Hybrid, Single Shaft Stepper Motor, 2.7Nm Torque, 24 V, 1.8°, 60 x 60mm Frame, 8mm, Шаговый двигатель

Sanyo Denki 103H7 Series Stepper Motor

Sany Denki range of 103H7 Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered.

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

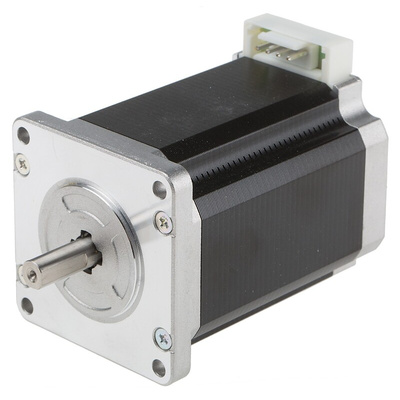

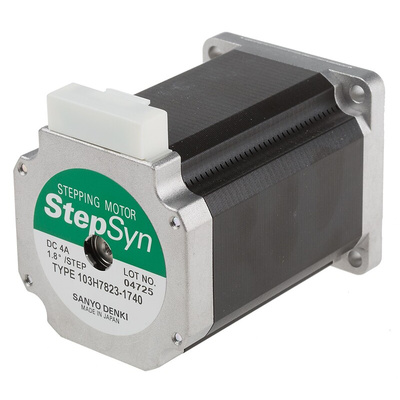

Sanyo Denki Stepper Motor, 1.8° Step Angle, 2.7Nm Holding Torque - SANMOTION 103H7 Series - 103H7823-1740

Need an accurate positioning tool for tasks such as controlling the movements of your industrial robots? Choose this stepper motor from Sanyo Denki. The device uses an electrical pulse to move its rotor through a small rotation of 1.8° at a time. This means you benefit from a high degree of precision when carrying out pre-programmed sequences on automated machinery. A compact frame size of 60 (length) x 60mm (width) means you can install the unit in tight spaces. As the coils of this bipolar stepper motor can change polarity, you can put both its phases to work simultaneously for increased torque output.

Features & Benefits

• Suitable for horizontal or vertical mounting for flexible installation
• Wide operating temperature range of -10℃ to +50℃ for use in harsh environments
• IP40 rating means it's finger-safe and protected against tools and wires larger than 1mm in size

Applications

• Process automation
• Printers and scanners
• Automotive manufacturing
• Packaging facilities

Do I need to use a H-bridge with this stepper motor?

Yes, you need an H-bridge to switch the polarity of the voltage supplied to the motor. This lets the device move both forward and backwards.
