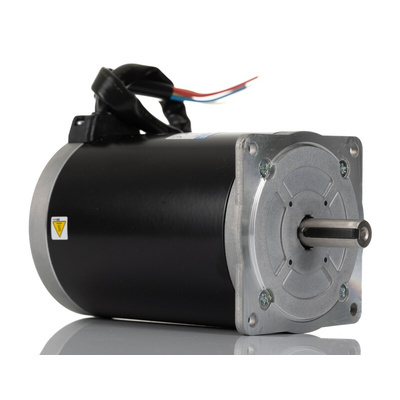

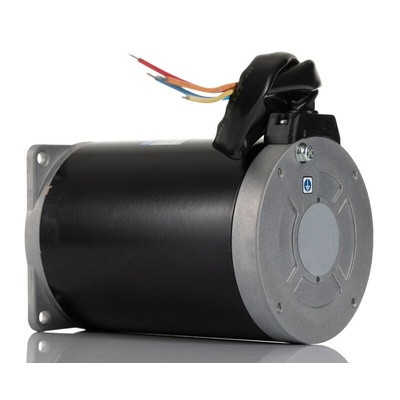

103H8223-6340, Sanyo Denki 103H8 Series Hybrid, Single Shaft Stepper Motor, 7.44Nm Torque, 100 V, 1.8°, 85.85 x 85.85mm Frame, 12mm, Шаговый двигатель

Sanyo Denki Stepper Motor, 6A Current Rating, 30mm Shaft Length - SANMOTION 103H8 Series - 103H8223-6340

Drive your automation processes forward precisely with this stepper motor from Sanyo Denki. Thanks to its step angle of 1.8°, it provides a higher level of control over mechanical elements than is possible with a standard motor. This product is a hybrid single-shaft version that offers a high torque of 7.44Nm for its size, so you get highly responsive operations. Its frame dimensions of just 85.85 (L) x 85.85mm (W) make it a compact solution.

Features & Benefits

• Shaft length of 30mm and diameter of 12mm for a good balance between torque transmission and torsional load
• Bipolar winding means both coils are energized for enhanced torque

Applications

• Automation control
• Manufacturing equipment
• Home electronics projects
• Printers

What's the difference between a DC and a stepper motor?

DC motors rotate continuously, whereas stepper motors have toothed electromagnets inside that can be moved through one at a time for precise positioning. This allows the position of the rotor to be controlled digitally in applications such as robotics systems and automated production lines.

Sanyo Denki Stepper Motor

103H8223-6340 Stepper Motor Data Sheet

2342767_Catalogue_en
