SM2861-5151, Sanyo Denki SM2861 Series Hybrid, Single Shaft Stepper Motor, 3.30Nm Torque, 100 V, 1.8°, 85.5 x 85.5mm Frame, 14mm, Шаговый двигатель

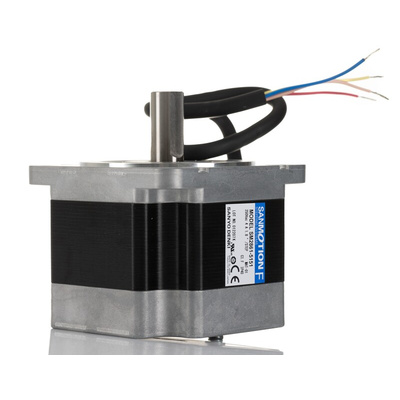

Sanyo Denki Stepper Motor, 67.5mm Depth, 30mm Shaft Length - SANMOTION SM2861 Series - SM2861-5151

When it comes to motion control, this stepper motor from Sanyo Denki steps up to the plate. Thanks to its step angle of 1.8°, you can use it to precisely manage the movement of mechanical components. As the product has a small frame size of 85.5 (L) x 85.5mm (W), it's a space-saving solution for cramped setups. A broad operating temperature range between -10°C and +40°C means you can be confident it can withstand demanding conditions. The unit also has an IP43 rating, so it's protected against objects larger than 1mm and water spray under 60° from vertical, making it a durable solution for long-term use.

Features & Benefits

• Holding torque of 3.3Nm for use in heavy-duty applications

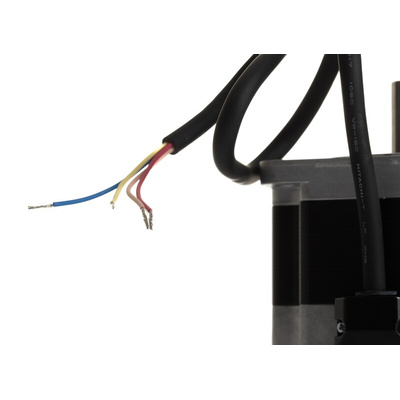

• Lead wire type for a simplified connection

Applications

• Manufacturing equipment
• Robotics systems
• Industrial automation
• Aerospace engineering

How much does this stepper motor weigh?

This unit weighs just 1.75kg, keeping excess bulk on your system to a minimum.

What does a bipolar winding arrangement mean?

This means both coils are used to produce torque, providing more precise positioning.

Sanyo Denki Stepper Motor

SM2861-5151 Stepper Motor Data Sheet

2342767_Catalogue_en
