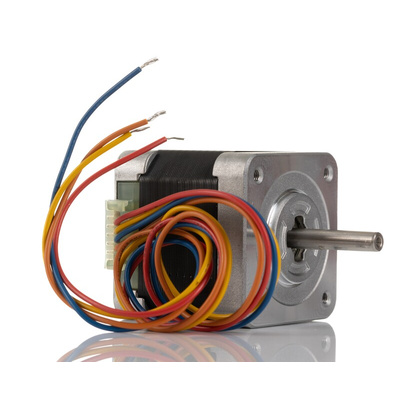

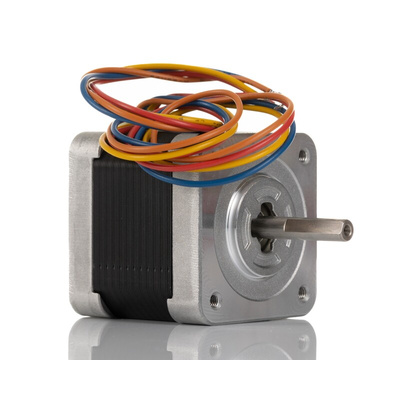

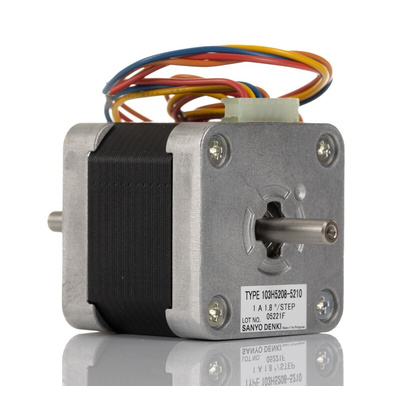

103H5208-5210, Sanyo Denki 103H5 Series Hybrid, Double Shaft Stepper Motor, 0.39Nm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft, Шаговый двигатель

Sanyo Denki Stepper Motor, 1A Current Rating, 0.39Nm Holding Torque - SANMOTION 103H5 Series - 103H5208-5210

For precise positioning of automated movements, count on this bipolar stepper motor from Sanyo Denki. It's a double-shaft type, meaning it can operate on two sides simultaneously for greater efficiency. This device has compact dimensions of 42 (L) x 42 (W) x 40.55mm (D) and a high holding torque of 0.39Nm, so it packs a punch in demanding applications.

Features & Benefits

• Light weight of 290g to place minimal strain on your equipment
• Step angle of 1.8° for a high degree of precision

Applications

• Medical devices
• Cameras
• 3D printers
• Process automation

How does a stepper motor work?

A stepper motor breaks up a full rotation into a number of much smaller part-rotations called "steps", so it can move through set degrees or angles of rotation. This allows it to produce minute and highly accurate movements in your machinery.

What's a hybrid stepper motor?

Hybrid stepper motors use an alternating sine/cosine waveform to increase the number of steps. They can be set up to run more smoothly and accurately than standard stepper motors, and they also offer quieter operation, higher torque-to-size ratios and greater output speeds.

Sanyo Denki Stepper Motor

103H5208-5210 Stepper Motor Data Sheet
