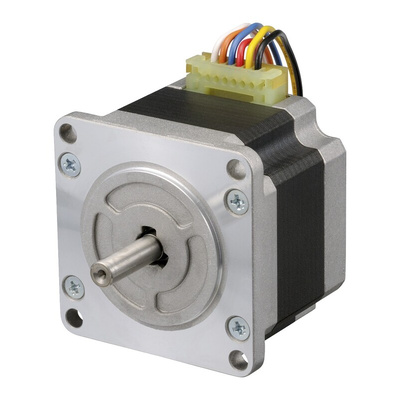

103H7123-0410, Sanyo Denki SANMOTION 103H7 Series Hybrid, Double Shaft Stepper Motor, 0.83Nm Torque, 24 V, 1.8°, 56 x 56mm Frame,, Шаговый двигатель

Sanyo Denki 103H7 Series Stepper Motor

Sany Denki range of 103H7 Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered.

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

Sanyo Denki Stepper Motor, 24V DC Voltage Rating, 2A Current Rating - SANMOTION 103H7 Series - 103H7123-0410

Choose this stepper motor from Sanyo Denki for precise rotation in your electrical and automation equipment. It works by dividing a full cycle into a series of repeatable steps or pulses, making it a good choice for applications that need precise positioning. As it's a hybrid device, the unit combines a permanent magnet with stator and rotor teeth for accurate step movements and improved performance. Its voltage rating of 24V DC makes this motor a practical choice for low-voltage applications.

Features & Benefits

• Current rating of 2A for energy efficiency
• Broad operating temperature range of -10°C to +50°C for use in demanding conditions

Applications

• 3D printers
• Robotics and automation
• CNC equipment

What's the difference between unipolar and bipolar stepper motors?

The main difference between a unipolar stepper motor and a bipolar option is the centre tap wire that splits the windings in half. A unipolar stepper motor has a single winding with a centre tap wire, while the bipolar motor has a series circuit with no centre tap.
