103H7123-5640, Sanyo Denki 103H7 Series Hybrid, Single Shaft Stepper Motor, 1.0Nm Torque, 24 V, 1.8°, 56 x 56mm Frame, 6.35mm Shaft, Шаговый двигатель

Sanyo Denki 103H7 Series Stepper Motor

Sany Denki range of 103H7 Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered.

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

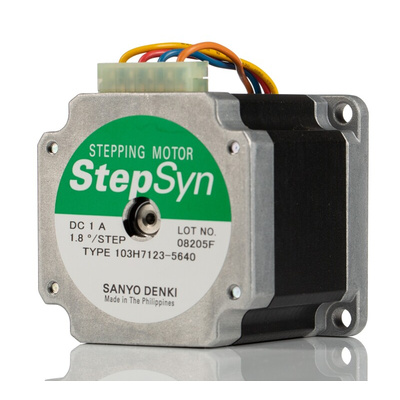

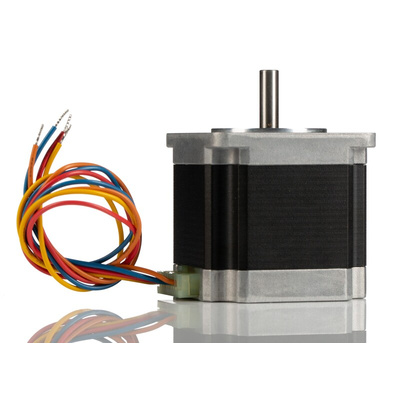

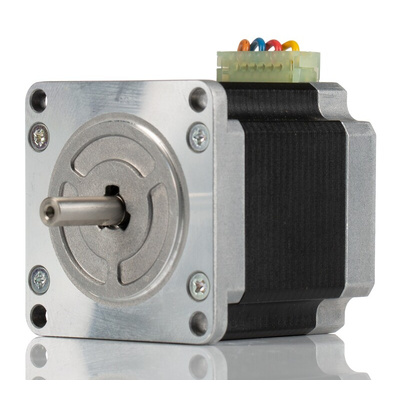

Sanyo Denki Stepper Motor, 1A Current Rating, 0.65kg Weight - SANMOTION 103H7 Series - 103H7123-5640

For accurate motion in mechanical processes, use this single-shaft stepper motor from Sanyo Denki. Thanks to its small step angle of just 1.8°, its rotating part moves in small intervals to let you achieve precise positioning. As it has a brushless motor, there's minimal risk of friction, giving you reduced wear for a longer service life.

Features & Benefits

• Wide operating temperature range between -10°C and +50°C for use in challenging conditions
• IP40 rating means it's protected against tools and wires larger than 1mm in size
• Compact dimensions of 53.8 (L) x 56 (W) x 56mm (H) mean it will take up minimal space in your setup

Applications

• Precision positioning equipment
• Fluid control systems
• Process automation
• Packaging machinery
• Robotics

Is this unit resistant to vibrations?

Yes. This stepper motor is resistant to vibrations across a wide frequency range of 10 to 500Hz, giving you consistent performance in heavy-duty environments.

What's the current rating of this unit?

This motor has a current rating of 1A, making it a good choice for use in low-power applications.

Sanyo Denki Stepper Motor

103H7123-5640 Stepper Mot Data Sheet
