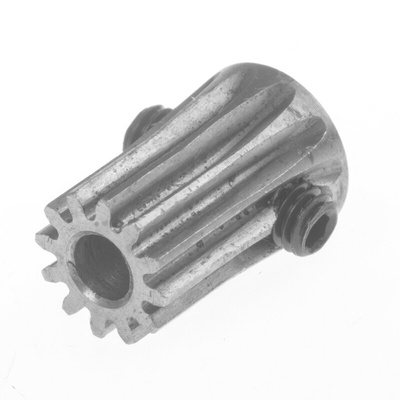

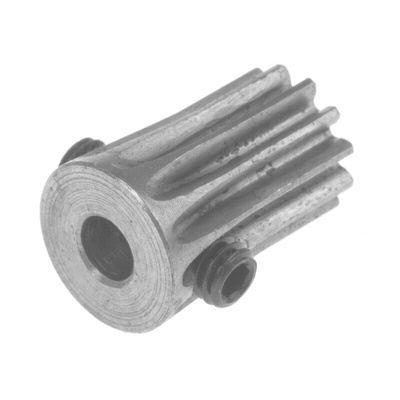

RS PRO Steel 12 Teeth Spur Gear, 0.5 Module, 3mm Bore Diam, 6mm Pitch Diam, 8mm Hub Diam

RS PRO Steel Spur Gears

Use these steel spur gears from RS PRO to get your industrial equipment moving. Our extensive range of spur gears is selected for their high-quality, ease of use and performance while ensuring the correct power, torque multiplication, and speed reduction. To obtain your ideal solution, browse the range using the improved filters to locate the module to suit your application.

Also known as

• Straight gears


• Straight-cut gears


• Spur wheels


• Spur gearing

Features and Benefits

• Steel EN8 (080M40/080M46) or equivalent


• 20° pressure angle


• Metric


• DIN Standard - DIN 867, DIN 3962, DIN 3963, Grade / Quality 9 or equivalent


• Standard tolerance, unless otherwise stated ±0.25mm

Applications

• Machine Tools


• Transmissions


• Speed Reduction

FAQs

What is the module?

A module is expressed as d/N which is the pitch diameter divided by the number of teeth. This explains the size of the gear or qualifies the unit size of a gear based on the number of teeth. Use this parameter to conclude if the gear is compatible.

Note

SSN type gears come with M4 grub screws fitted.
SSN10/10B and SSN10/12B are hobbed type pinions with cutter runout after the 5 mm gear face width.

RS Pro Datasheet
