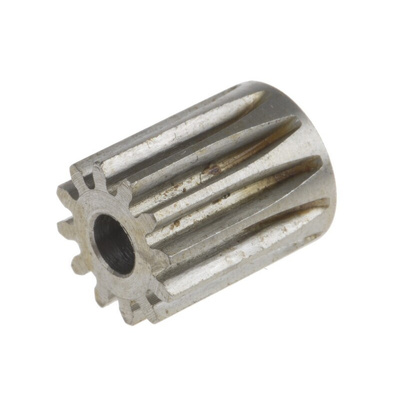

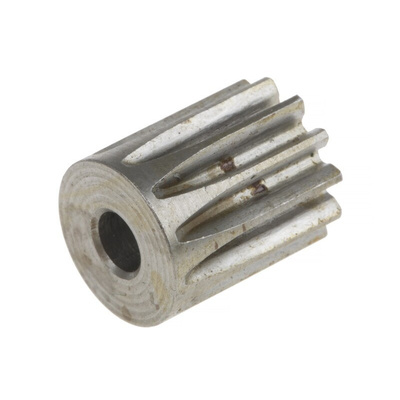

RS PRO Steel 12 Teeth Spur Gear, 0.8 Module, 4mm Bore Diam, 9.6mm Pitch Diam, 11.2mm Hub Diam

RS PRO Steel Spur Gears

Use these steel spur gears from RS PRO to get your industrial equipment moving. Our extensive range of spur gears is selected for their high-quality, ease of use and performance while ensuring the correct power, torque multiplication, and speed reduction. To obtain your ideal solution, browse the range using the improved filters to locate the module to suit your application.

Also known as

• Straight gears


• Straight-cut gears


• Spur wheels


• Spur gearing

Features and Benefits

• Steel EN8 (080M40/080M46) or equivalent


• Range of gear ratios


• Ideally used for speed reduction or increase, torque multiplication, resolution and accuracy in positioning systems.


• 20° pressure angle


• Metric

Applications

• Machine Tools


• Transmissions


• Speed Reduction

Note

SSN10/10B and SSN10/12B are hobbed type pinions with cutter runout after the 5 mm gear face width.

Standards

DIN Standard - DIN 867, DIN 3962, DIN 3963, Grade / Quality 9 or equivalent
