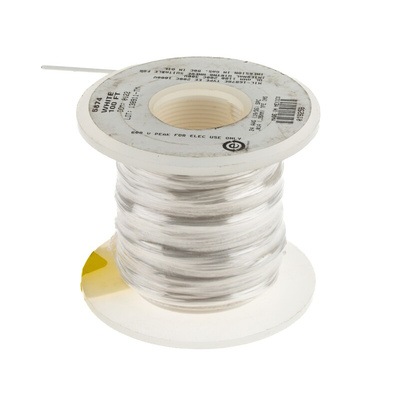

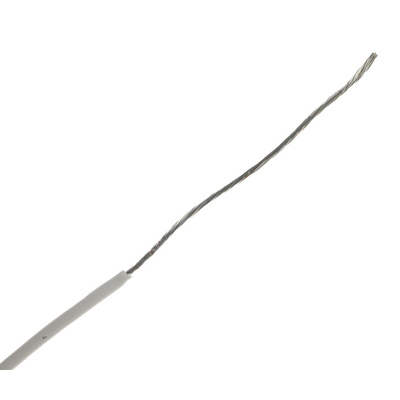

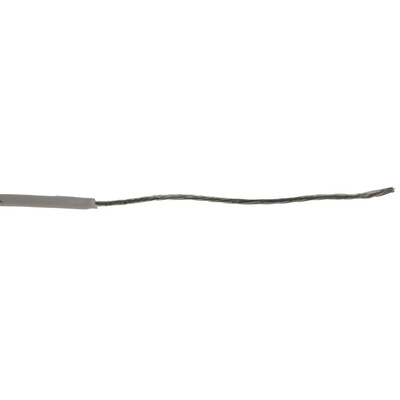

5874 WH005, Alpha Wire Premium Series White 0.2 mm² Hook Up Wire, 24 AWG, 19/0.13 mm, 30m, PTFE Insulation

Belden Alpha Wire White Hook-Up Electrical Wire, 30m Length, 24AWG - Premium Series - 5874 WH005

Use this hook-up cable from Belden Alpha Wire to ensure a reliable energy connection in your system. It comes with strong PTFE (polytetrafluoroethylene) insulation, which is both waterproof and resistant to abrasion. This, along with a voltage rating of 1kV (kilovolt), makes the cable ideal for high-energy systems. It's also suitable for high-heat environments and conditions where temperatures fluctuate. The copper conductors are silver-plated for reliable electrical conductivity and fast power transmission. You can easily identify this flex in your circuit thanks to its white colour-coding.

Features & Benefits

• Wide operating temperature range between -60°C and +200°C for use in harsh environments
• Ample 30m cable length for large-scale application or multiple jobs
• Compact outer diameter of 1.37mm for installation in small circuits

Applications

• Industrial switchboards
• Aerospace engineering
• Military equipment

Is this hook-up wire resistant to chemicals?

Yes, this hook-up wire can withstand chemical damage thanks to its durable PTFE (polytetrafluoroethylene) outer sheath. PTFE is a high-density compound that’s hydrophobic (water-repellant) and resistant to the abrasive effects of solvents.

Datasheet

Cable Selection Guide
