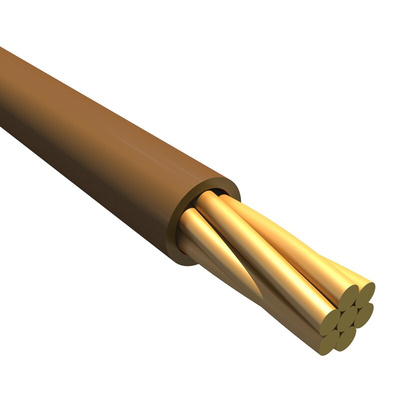

2844/7 BR005, Alpha Wire Premium Series Brown 0.23 mm² Hook Up Wire, 24 AWG, 11871, 30.5m, PTFE Insulation, Провод

Alpha Wire PTFE Hook-Up Wire

Hook up wire is a single insulated conductor wire that can be used in electronics for low voltage and low current applications. This hook up wire is made from PTFE which can deal with high temperatures, has excellent electrical properties and is resistant to many chemicals and solvents. Hook up wire is frequently used in control panels, automotive, meters, ovens, internal wiring of computers, electronic equipment, business machines and appliances. This type of hook up wire from Alpha Wire can be used in military applications.

Features and Benefits

PTFE insulation
Stranded or solid silver-plated copper conductor
Can withstand high temperatures
Chemically inert: Chemical and solvent resistance
Excellent electrical properties

What is Mil-spec?

Mil-spec is a US defence standard used to help achieve standardisation objectives by the U.S. department of defence. Suitable for demanding electronic military applications. Military hook-up wire is expected to work under extreme conditions such as, temperature, shock and exposure to chemicals.

Product Application Information

Control cabinets in protected environments
Machine tool on the factory floor
High temperature oven
Off-road construction equipment
Transformers
Switchboard
Military applications

Standards

MIL-DTL-16878/4 (Type E), UL AWM 1213, NEMA HP3

250 V, PTFE Hook-Up Wire, 2844/7 BR005

MIL-DTL-16878/6 (Type ET), NEMA HP3
Temperature Range: -60°C to +200°C
Wire Size: 24 AWG
Stranding: 7/32 AWG
NEMA HP3 Type: ETXBEB
Insulation Colour: Brown
