REM10-0512D/A, Recom REM10 DC-DC Converter, ±12V dc/ ±416mA Output, 5.5 → 9 V dc Input, 10W, Through Hole, +105°C Max Temp, Преобразователь

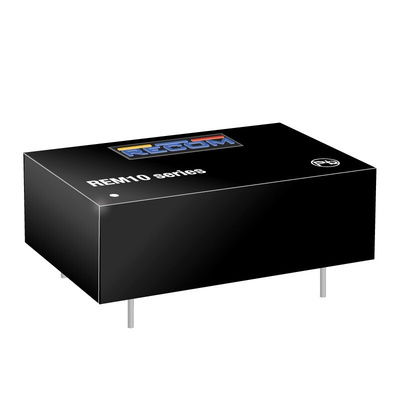

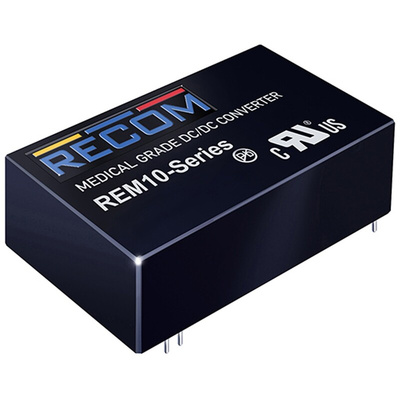

RECOM DC-DC Converter, 5kV AC Isolation Voltage, 2 Outputs - REM10 Series - REM10-0512D/A

Need to smoothen the voltage supply to your medical equipment? Iron out the kinks with this DC-DC converter from RECOM. Its tightly regulated dual outputs provide a stable 12V DC power supply, making it just what you need for precision components, such as laboratory equipment. Thanks to a high 5kV AC isolation voltage, you can rest assured the converter protects people connected to medical devices from electric shocks. Short-circuit and overload protection ensures power faults won't reach downstream devices and cause damage.

Features & Benefits

• Minimal ESD means there's little chance of interference with nearby electronic devices
• Works safely in a wide operating temperature range between -40°C and +105°C
• Auto-recovers after a short-circuit so there's no need for manual intervention
• Low ripple and noise for minimal voltage distortion

Applications

• Aerospace technology
• Hospitals and medical centres
• Dentistry equipment
• Security systems

How big is this DC-DC converter?

Compact dimensions of 31.8 (L) x 20.3 (W) x 10.4mm (H) mean the component needs minimal board packing space.

What's the power rating of this converter?

A high power rating of 10W means you can use the device in demanding systems.
