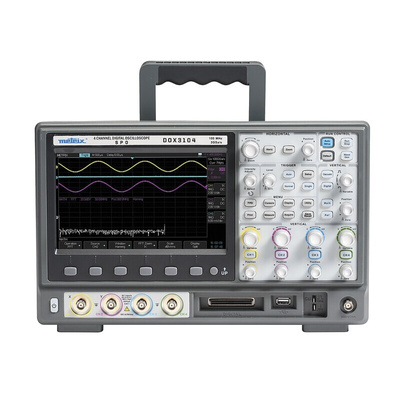

DOX3104, Metrix DOX 3104 DOX3000 Series Digital Bench Oscilloscope, 4 Analogue Channels, 100MHz

Metrix Sensitive Phosphor Oscilloscope DOX3000

The Metrix DOX3000 Series offers innovative sensitive phosphor oscilloscope (SPO) technology, digital trigger, decoding of serial bus, logic input MSO and integral logic analyser. The choice of model is between the 100MHz, 4-channel DOX3104 ( 879-3848 ) and the 300MHz, 4-channel DOX3304 ( 879-3842 ). Eight-channel probe DOX-MSO3LA ( 879-3851 ) is available separately for use with the Metrix DOX3000 Series.

Serial bus decoding and function generator
Innovative sensitive phosphor oscilloscope (SPO) technology
8 inch colour screen
Long memory depth up 28Mpts
Waveform capture up to 110,000 forms/s
Zoom function based on hardware technology
Advanced math function (FFT, d/dt, integral, square root)
Integration of an arbitrary signal generator 25MHz
Many serial triggering and decode signals of digital frames (I2C, SPI, UART, CAN, LIN)
Comprehensive triggering functions (Window, Runt, Interval, DropOut, Pattern)

Supplied with

Operating manual on CD (5 languages), quick start guide, probes (1 per channel), software, power cord, USB cable

Metrix

DOX3104 - DOX3304 Benchtop Digital Oscilloscope Data Sheet
