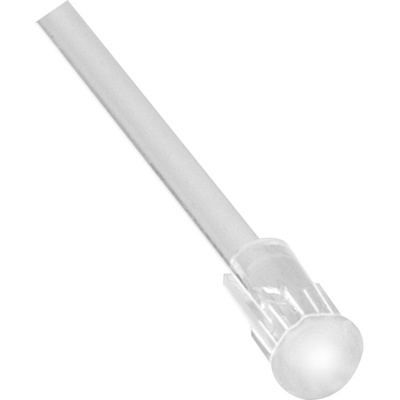

Mentor GmbH 1294.2000 MENTOR, PCB Mounted Flexible LED Light Pipe, Clear Round Lens, Оптический волновод

Flexible Light Guides for SMD LEDs (Switch)

This family of flexible light pipes, from MENTOR, have a 1 mm or 2 mm fibre. This range is designed for use with up to 3 Chipleds with a 0805 footprint or smaller. This enables the user to create bi-colour or tri-colour displays.

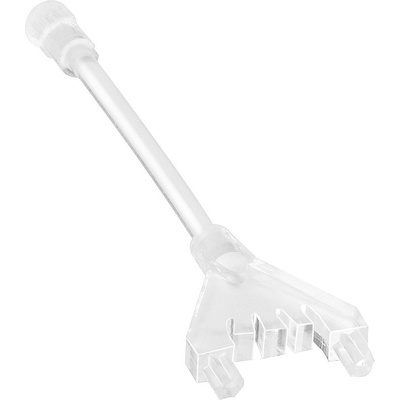

Vertical light pipes are designed for use with surface mount (SMD) LEDs and are fitted to the circuit board using push-fit lugs. The light pipe inject face sits in close proximity to the LED on the board.

Features of the flexible light pipes:
Round heads
PC clear UL94 body and lens
PMMA flex light pipe
Ambient temperature: -40°C to +85°C

LED Light Pipes, MENTOR - Flexible

MENTOR light guides are designed to transmit light from a PCB-mounted LED to the desired user interface. This transfer is completed with little or no loss of luminance and no light bleed between adjacent elements.
The flexible LEDs push-fit into a plastic housing which is mounted onto the PCB. They have a round head shape in a range of diameters.

Data Sheet

Flexible Light Guides
