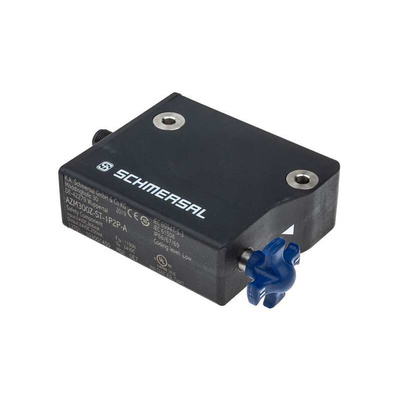

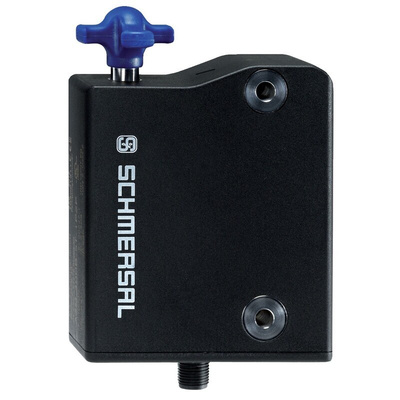

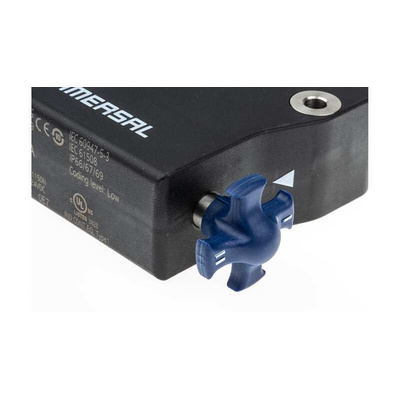

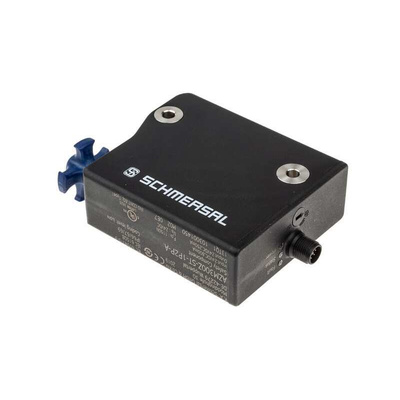

AZM300Z-ST-1P2P-A, Schmersal AZM 300 Series Solenoid Interlock Switch, Power to Lock, 24V dc

Schmersal Solenoid Interlock Switch with Power to Lock Function, 24V DC - AZM 300 Series - AZM300Z-ST-1P2P-A

Reduce the risk of accidental injury to operators and improve overall worksite safety with this solenoid interlock switch from Schmersal. It prevents machine operation or start-up in hazardous situations and can also stop both hinged and sliding guards from opening. Three LEDs (light-emitting diodes) indicate the correct supply voltage, the switching condition and any functional defect errors. This device has a power supply voltage rating of 24 V DC and an operating temperature range of 0°C to +60°C. There are two PNP (positive-negative-positive) safety contacts and one PNP auxiliary contact.

Features and Benefits

• RFID (radio frequency identification) technology provides protection against tampering
• Compact design with dimensions of 85 (w) x 100 (h) x 35mm (d)
• Robust thermoplastic enclosures with screw terminals
• Efficient time to readiness of five seconds
• Guard locking monitoring is supported

Application Information

• Automotive
• Robotics
• Rail industry and transportation

Can I use multiple switches together?

A series chain of these switches can be connected up to a total length of 200 metres, to suit the needs of your system.
