MP-AZ/AZM300-1, Schmersal Safety Interlock Adapter for use with AZM 300 Series Safety Switches

Schmersal AZM300 Solenoid Interlock Switch

The AZM300 Solenoid Interlock Switch is significantly different from other switchgear offered on the market. Because of the innovative interlocking system in the form of a rotary Maltese cross, the interlock can be actuated from three sides, providing universal application possibilities. It can be used both on revolving doors with left-hand side and right-hand side hinges and on sliding doors.
No additional add-on parts such as a door stop or a latching element are required as they have been integrated in the interlock. The AZM 300 integrates another practical function, namely the adjustable latching force, i.e. the non-safety-related interlocking function when the safety guard is unlocked. Because of this feature, the interlocking system can be smoothly adjusted to suit individual requirements.
An integrated RFID sensor detects the identification and the coding of the actuator. Two different types of coding are available, a basic version and a uniquely coded version. In the basic version the sensor will accept any suitable target, whereas the uniquely coded version only reacts to an individually assigned target. The teaching procedure can be repeated an arbitrary number of times.

Symmetric mounting for right and left hinged doors
Only one version for hinged and sliding doors
Compact design
Can be used as end stop
3 actuating directions
Large actuator play
Switchable latching force (25N / 50N)
PLe / SIL 3
Series-wiring without reduction of the safety level
More than 30,000 diferent codings
Serial diagnostic
Low power consumption
Power to lock or power to unlock
Actuator or guard locking monitored
Hygiene-compliant design, resistant to many cleaning agents
Protection class IP69K
Manual release
Smooth fitting to DIN rails

Note

Actuators must be ordered separately, stock no 880-1735.
Mounting Plate available separately, stock no. 880-1744.

Standards

EN 60947-5-1, IEC 60947-5-3, IEC 61508, EN ISO 13849-1.

Approvals

TUV, cULus, ECOLAB.

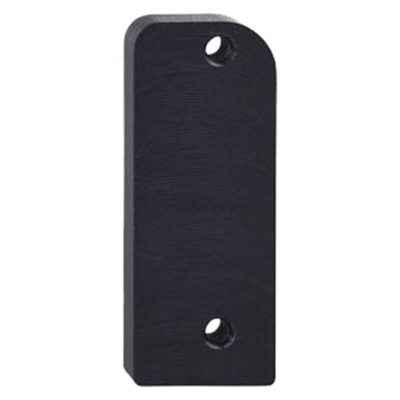

Schmersal Mounting Plate, For Use With AZM 300 Series, 250g Weight - MP-AZ/AZM300-1

Securely fasten your safety switch to a door using this mounting plate from Schmersal. It features a pre-drilled hole at its top and bottom, letting you securely install your switch in place. For ease of assembly, this component is designed for use with solenoid interlock safety switches from the AZM 300 series. Thanks to its compact dimensions of 98 (height) x 40 (width) x 18.5mm (depth), this unit will fit easily in small spaces.

Features & Benefits

• Plastic body is resistant to wear and corrosion for use in demanding conditions
• Light weight of 250g to place minimal strain on the mounting surface

Applications

• Security systems
• Construction sites
• Packaging machinery
• Automotive assembly plants
• Manufacturing industry

How does a solenoid interlock safety switch work?

A solenoid interlock safety switch keeps a guard door locked while a machine is in operation, preventing personnel from accessing dangerous equipment. When the built-in contacts are activated by a magnetic force, this causes the machine to stop working and allows the door to open. You can use these types of safety switches on revolving doors, hinged doors and sliding doors for versatility.
