RSS 36-I2-D-R-ST, Schmersal RSS 36 Series Non-Flush RFID Non-Contact Safety Switch, 20.4 → 26.4V dc, Reinforced Thermoplastic, Выключатель

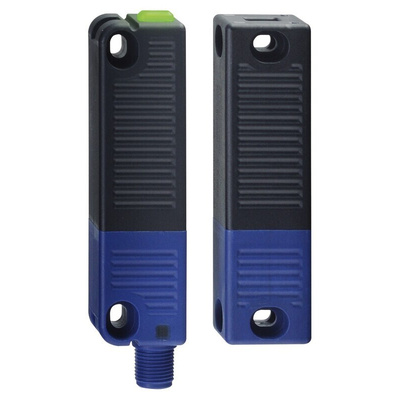

Schmersal RSS36 Non Contact Safety Switch

The RSS36 electronic safety sensor with unique diagnosis meets the highest safety requirements, even when series-wired. It also features new coding functions for the uniform allocation of the actuator to the sensor, this is realised through the integrated RFID technology. The RSS36 has three different coding variants to enable an optimal conformation to the required protection against tampering. The universal mounting features and the optional latching function provides a smooth and rational integration in separating safety guards.

Thermoplastic enclosure
Misaligned actuation possible
Dimensions: 27 x 108.2 x 35 mm
High repeat accuracy of the switching points
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Increased protection against tampering by optional individual coding of safety sensor and actuator
Safety and diagnostic signals can be wired in series
LED status indication
Sensor with connecting cable or with integrated connector
Robust due to the used cleaning agent-resistant materials and protection class up to IP69K

Note

Actuators must be ordered separately.
Stock no. 880-1769 comes with a latching magnet.
Stock no. 880-1763 comes without a latching magnet.

Approvals

TUV, cULus, ECOLAB.

Supplied with

EN ISO 13849-1, IEC 61508, IEC 60947-5-3, EN 62061.

Schmersal Non-Contact Safety Switch, M12 Connector, 600mA Operating Current - RSS 36 Series - RSS 36-I2-D-R-ST

Use this non-contact safety switch from Schmersal to monitor the status of machine guards and doors. It accommodates initial misalignment for simple installation and enhanced efficiency. This device's housing is made from glass fibre-reinforced thermoplastic that's self-extinguishing for safety in the event of a fire. Thanks to its low operating current of 600mA, this component is an energy-efficient choice. A mission time of 20 years means this switch will last a long time.

Features & Benefits

• Protected against short circuits for increased electrical safety
• Broad operating temperature range between -25°C and +70°C for use in harsh environments
• IP67 rating means it's protected against dust and immersion in 1m of water for up to 30 minutes
• Conforms to IEC 60947-5-3 standards for control circuit devices and switching elements
• LED indicators for ease of monitoring operating status

Applications

• Pharmaceutical industry
• Conveyors
• Robotics and automation

What's this switch's reaction time?

This device has a quick maximum reaction time of <
100ms, so it will quickly respond to hazards to enhance workplace safety.
