RSS 36-SD-ST, Schmersal RSS 36 Series Solenoid Interlock Switch, 24V dc

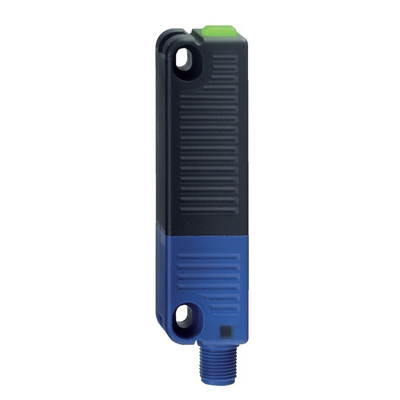

Schmersal RSS36 Non Contact Safety Switch

The RSS36 electronic safety sensor with unique diagnosis meets the highest safety requirements, even when series-wired. It also features new coding functions for the uniform allocation of the actuator to the sensor, this is realised through the integrated RFID technology. The RSS36 has three different coding variants to enable an optimal conformation to the required protection against tampering. The universal mounting features and the optional latching function provides a smooth and rational integration in separating safety guards.

Thermoplastic enclosure
Misaligned actuation possible
Dimensions: 27 x 108.2 x 35 mm
High repeat accuracy of the switching points
2 short-circuit proof PNP safety outputs
Integral cross-short, wire-breakage and external voltage monitoring of the safety cables up to the control cabinet
Increased protection against tampering by optional individual coding of safety sensor and actuator
Safety and diagnostic signals can be wired in series
LED status indication
Sensor with connecting cable or with integrated connector
Robust due to the used cleaning agent-resistant materials and protection class up to IP69K

Note

Actuators must be ordered separately.
Stock no. 880-1769 comes with a latching magnet.
Stock no. 880-1763 comes without a latching magnet.

Approvals

TUV, cULus, ECOLAB.

Supplied with

EN ISO 13849-1, IEC 61508, IEC 60947-5-3, EN 62061.

Schmersal Safety Sensor, 24V DC, Thermoplastic - RSS 36 Series - RSS 36-SD-ST

Need a tamper-proof safety device? This electronic safety sensor from Schmersal features an individually coded sensor and actuator for enhance protection against tampering. It can also compensate for misalignment between the actuator and sensor for uninterrupted operation. The safety cables are monitored for wire breakage and external voltage surges, enhancing the reliability of the product. A strong thermoplastic housing offers good resistance to abrasion, dirt and moisture to keep the unit in optimal working condition.

Features & Benefits

• Two safety outputs for better performance and reliability
• Includes an M12 connector socket for ease of wiring and assembly
• Allows up to 31 sensors to be wired in a series for improved efficiency
• Meets EN ISO 13849-1 (European Norm/International Organisation for Standardisation) requirements for safety devices in a control system

Applications

• Packaging facilities
• Automotive industry
• Medical and pharmaceutical industries
• Construction industry

What size screws are needed to mount this sensor?

To assemble this sensor along with a flat-mounted actuator, a 25mm screw length is usually sufficient. When mounting the actuator upright, it's recommended to use screws with a length of 30mm.
