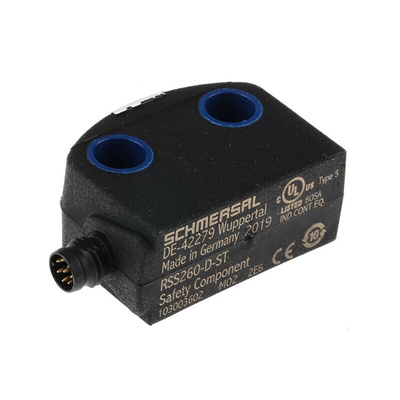

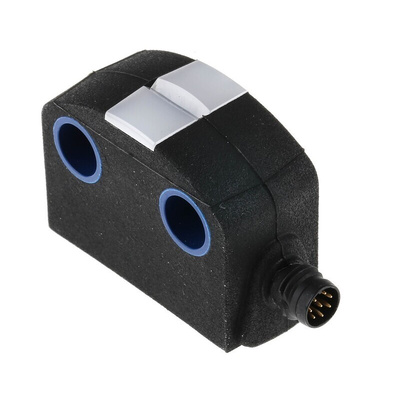

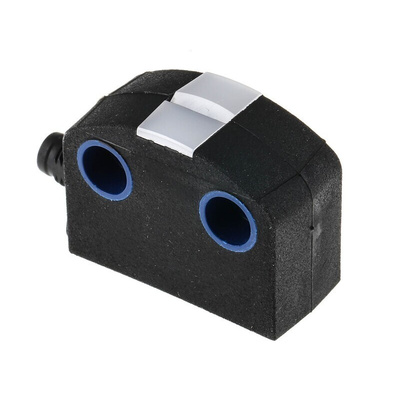

RSS260-D-ST, Schmersal RSS 260 Series RFID Non-Contact Safety Switch, 20.4 → 26.4V dc, Plastic Housing, M8, Выключатель

Schmersal RFID Non-Contact Safety Switch, M8, 600mA - RSS 260 Series - RSS260-D-ST

Use this non-contact safety switch from Schmersal to improve workplace safety in industrial environments. It has a coded actuator and uses radio frequency identification (RFID) technology to prevent tampering with the switch. It triggers an alarm when swivel doors are opened during operation, alerting you to a potential hazard.
This component can be connected with up to 31 sensors in series for easy diagnosis via a programmable logic controller (PLC), so you can monitor and configure multiple switches at the same time. It has a thermoplastic housing that offers excellent durability and corrosion resistance, making it suitable for use in demanding industrial environments.

Features & Benefits

• IP67 (ingress protection) rating indicates the unit can withstand dust and immersion in up to 1m of water for 30 minutes
• Meets IEC/EN 60947-5-3 (International Electrotechnical Commission/European Norm) electrical safety standards
• Surge voltage capacity of 0.8kV to efficiently handle voltage spikes
• Broad operating temperature range of -25°C to +65°C for use in harsh environments

Applications

• Access points to hazardous industrial areas
• Chemical processing plants

How do I identify the device's switching status?

This safety switch has three light-emitting diode (LED) indicators for easy status identification. Green indicates that there's a supply voltage, red shows an error and yellow means it's sensing.

Datasheet RSS260-D-ST

Operating Instructions RSS260

Series Datasheet RSS260-D-ST

EC Type Examination Certificate

Machine Guarding and Safety Range Overview
