RSS260-SD-ST, Schmersal RSS 260 Series Non-Contact Safety Switch, 20.4 → 26.4V dc, Reinforced Thermoplastic Housing, Выключатель

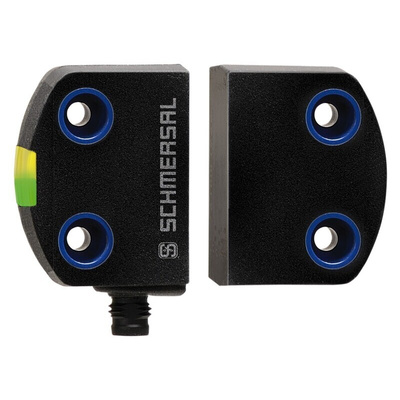

Schmersal RSS260 Non Contact Safety Switch

The RSS260 is a non contact safety switch with RFID technology whish is designed for applications in safety circuits and is used for monitoring the position of movable separating safety guards. In addition to its compact design and high protection against tampering, it is suitable for removable, rotatable and sliding protection equipment.
The RSS260 is suitable for both installations on aluminium profiles, as well as for use on many different door sizes like the frequently used Plexiglas doors and panels. You can choose the appropriate sensor-actuator combination for your application, depending on the door and the door direction of movement. Even with the coding you have all the freedom you need and you can use the teach function as often as you want or code individually. Thanks to RFID technology, a high tamper protection is ensured despite the flexibility.

Thermoplastic enclosure
High protection against tampering through RFID technology
Compact, subtle and elegant design
Easy installation without additional angles
Universal application through different targets for typical installation situations
Repeated universal or individual coding
Preservation of safety levels and diagnostic capability even when connected in series
Maximum of 31 sensors can be wired in series
IP65, IP67 to IEC/EN 60529

Actuators

Stock no. 880-1836 is for a swivel door with frame, no interfering contour of the door cutout
Stock no. 880-1845 is for a Plexiglas door, flat design, discreet appearance
Stock no. 880-1848 is for a sliding door, smallest size, embedded in Plexiglas

Note

Actuators must be ordered separately.

Standards

EN ISO 13849-1, IEC 61508, IEC 60947-5-3, EN 62061.

Approvals

TUV, cULus.

Schmersal Non-Contact Safety Switch, 24V DC Voltage Rating, 600mA Operating Current - RSS 260 Series - RSS260-SD-ST

Need a safety device to control access to your automated system? Choose this non-contact safety switch from Schmersal. Its RFID technology ensures compatibility between the actuator and sensor, which helps to reduce the risk of tampering. This device's enclosure is made from self-extinguishing thermoplastic to protect your appliances in the event of a fire. An IP67 rating means this component is protected against dust and immersion in 1m of water for up to 30 minutes.

Features & Benefits

• Wide operating temperature range between -25°C and +65°C for use in demanding conditions
• LED indicators for easy status monitoring
• Conforms to EN IEC 60947-5-3 standards for low-voltage switchgear and controlgear
• Low operating current of 600mA for energy efficiency

Applications

• Process and packaging equipment
• Robotics and automation
• Beverage production
• Conveyors

How quickly does this switch respond to hazards?

This device has a fast maximum reaction time of 100ms for optimal safety.

How much does this switch weigh?

This switch has a light weight of 60g for ease of handling and reduced strain on the mounting surface.
