MZM 100 ST2-SD2PREM-A, Schmersal MZM 100 Series Solenoid Interlock Switch, Power to Lock, 24V dc

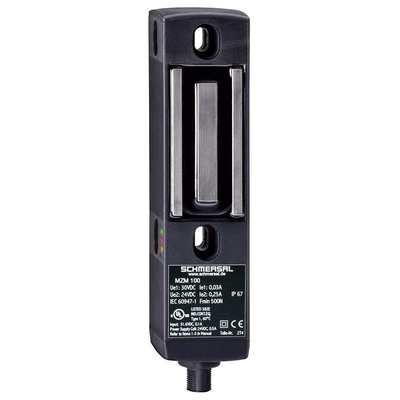

Schmersal MZM100 Solenoid Interlock Switch

The MZM100 Safety switch from Schmersal has a solenoid interlock without a positive-linked mechanical locking mechanism. It uses an electromagnet to generate a 500-N holding force and then transmits the signal “interlock locked” to the safety-monitoring module. The forced-closed operating principle of the MZM100 switch offers multiple advantages. Mechanical wear becomes a thing of the past because of the absence of moving parts. The actuator and the locking mechanism are free from play and therefore neutralise undesired noises, even on machines with high vibrations. Despite the absence of play between actuator and interlock, the system tolerates large door misalignments. The smooth surfaces of actuator and interlock furthermore provide for the simplicity of cleaning.
An integrated sensor, functioning according to the patented pulse-echo operating principle from Schmersal, detects and monitors the position of the safety guard. Multiple safety switchgear can be monitored by means of one safety-monitoring module, without detriment to the safety level, saving money and clearing space in the control cabinet.
The MZM100 fulfils the requirements of control category 4 to EN 954-1 or SIL 3 to IEC 61508 and the magnetic locking principle complies, amongst others, with EN 60947-5-1.
Because of its compact size, the MZM100 can be fitted on conventional 40 mm machine profiles. It is suitable for light safety guards on packaging and wrapping machines thanks to its insensitivity to vibration, and is ideal for use in the food-processing industry because it has no surfaces, where dust and dirt can gather.

Automatic latching
Solenoid interlocks (for the protection of people) with innovating and unique operating principle
Dimensions 40 x 179 x 40 mm
Electronic contact-free, coded system
Thermoplastic enclosure
Maximum length of the sensor chain 200 m
3 LEDs to show operating conditions
Sensor technology permits an offset between actuator and interlock of ± 5 mm vertically and ± 3 mm horizontally
Intelligent diagnosis
Self-monitoring series-wiring of 31 sensors
IP67 to IEC/EN 60529

Note

Actuator must be ordered separately, stock no. 880-1909.
Stock no. 880-1918 is a target for variable setting of L/Force.
Stock no. 880-1911 is a mounting kit (screws included).

Standards

EN ISO 13849-1, IEC 61508, IEC 60947-5-3, EN 60947-5-1.

Approvals

BG, cULus.

Schmersal Solenoid Interlock Switch, M12 Connector, 2 Safety Contacts - MZM 100 Series - MZM 100 ST2-SD2PREM-A

This solenoid interlock switch from Schmersal helps promote safety around dangerous machinery. Its holding force of 750N securely locks your guard doors in place, providing protection from moving parts to prevent injury to personnel. The switch has a maximum reaction time of 150ms, so it responds quickly for maximum safety. It accommodates an initial misalignment between the lock and the actuator of ±5mm vertically and ±3mm horizontally for ease of installation.

Features & Benefits

• Glass fibre-reinforced thermoplastic enclosure for resistance to heat and impact
• Meets EN 61508 requirements for safety-related devices
• IP67 rating means it's dust-tight and can withstand submersion in 1m of water for up to 30 minutes
• LED indicators make it easy to determine operating status at a glance
• Robust mechanical lifespan of at least one million cycles for long-lasting use

Applications

• Semiconductor manufacturing
• Bottling plants
• Conveyor systems
• Textile industry

Does this solenoid interlock switch include an actuator?

No, this switch doesn't come with an actuator. You should order a compatible actuator (880-1909) to use the device.
