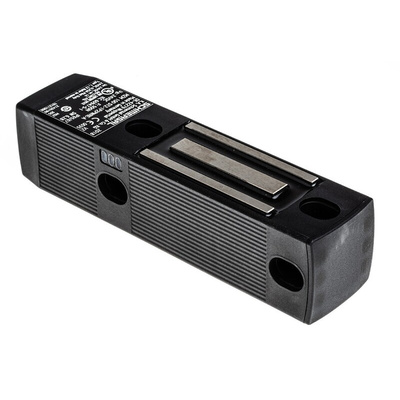

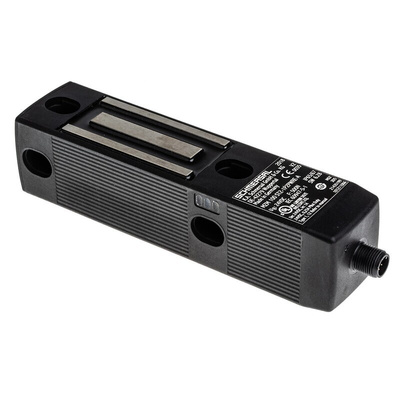

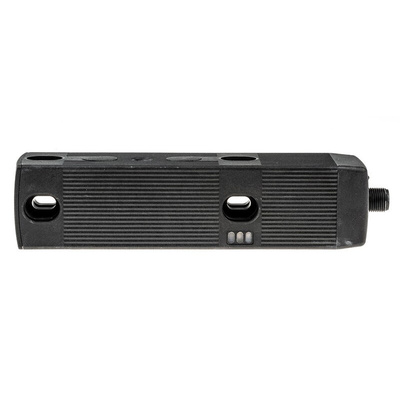

MZM 100 ST2-1P2PWRE-A, Schmersal MZM 100 Solenoid Interlock Switch Power to Lock 24 V dc

Schmersal Solenoid Interlock Switch

The Schmersal MZM100 series power to lock solenoid interlock switch has a power supply voltage rating of 24VDC. The switch has a solenoid interlock without a positive-linked mechanical locking mechanism. The forced-closed operating principle of the MZM100 switch offers multiple advantages. Mechanical wear becomes a thing of the past because of the absence of moving parts. The actuator and locking mechanism are free from play and therefore, neutralise undesired noise, even in machines with high vibrations. Despite the absence of play between actuator and interlock, the system tolerates large door misalignments. The smooth surface of this actuator and interlock furthermore provide for the simplicity of cleaning. Multiple safety switchgear can be monitored using one safety-monitoring module, without detriment to the safety level, saving money and clearing space in the control cabinet. As it is compact, it can be fitted on conventional 40mm machine profiles.

Features and Benefits

Guard locking monitored
Automatic latching
Solenoid interlocks (for the protection of man) with innovating and unique operating principle
Electronic, contact-free coded system
Thermoplastic enclosure
Maximum length of the sensor chain is 200m
Three LEDs to show operating conditions
Sensor technology permits an offset between actuator and interlock of ±5mm vertically and ±3mm horizontally
Intelligent diagnosis
Self-monitoring series-wiring of 31 sensors

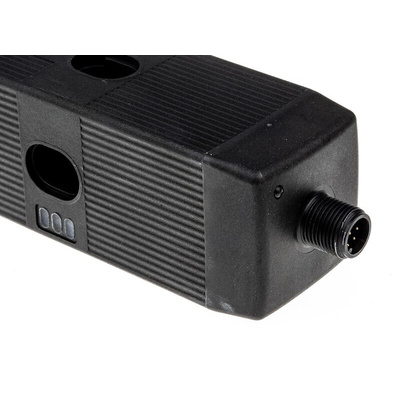

Connector M12 and 8-pole

Applications

Food processing industry
Light safety guards
Packaging and wrapping machines

Certifications

IEC 61508
EN ISO 13849-1
EN ISO 13849-1
EAC certified
CE certified
IP67 rated
IEC/EN 60529

Datasheet MZM100ST2-1P2PWRE-A

Operating Instructions MZM100

Machine Guarding and Safety Range Overview
