SD-2V-S-SK, Schmersal SD Series Junction Box

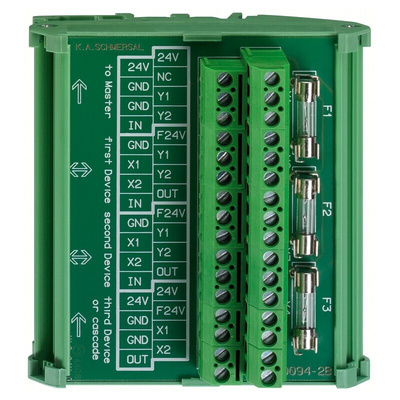

Schmersal SD-2V-S-SK Junction Box, Cabinet Mounted

The SD-2V-S-SK junction box is a cabinet mounted device which allows 2 components to be connected.

Cabinet-mounting
Junction box for 2 components, with screw terminals
Fitted onto a proper standard DIN rail to facilitate wiring in the control cabinet
Plastic, thermoplastic, self-extinguishing

Approvals

VDE 100.

Schmersal Enclosure, 89.6mm Height, 24V DC Operating Voltage - SD Series - SD-2V-S-SK

Make secure electrical connections in your control cabinet with this junction box from Schmersal. It provides connections for two components at once, making it a versatile option. The panel supports cables with a cross-section between 0.25 and 2.5mm² for compatibility with a wide variety of appliances. It's designed for mounting on a DIN rail for ease of installation. Screw terminals help to ensure secure wiring, even in the event of heavy vibrations.

Features & Benefits

• Compact dimensions of 89.6 (height) x 92 (width) x 68.5mm (depth) to take up minimal space in your cabinet
• Thermoplastic housing is self-extinguishing for safety in the event of a fire
• Wide operating temperature range of -25°C to +70°C for use in harsh environments
• Light weight of 200g to place minimal strain on your equipment
• Rated impulse withstand voltage of 0.8kV to handle powerful surges

Applications

• Switchboards
• Diagnostic systems
• Power distribution
• Logistics industry

What's the operating voltage of this junction box?

This junction box has a voltage rating of 24V DC, making it a good choice for use in low-power applications.
