CASM-32-BS-0100-AM, Ewellix Makers in Motion

SKF CASM Electric Cylinders with Brushless DC Motors

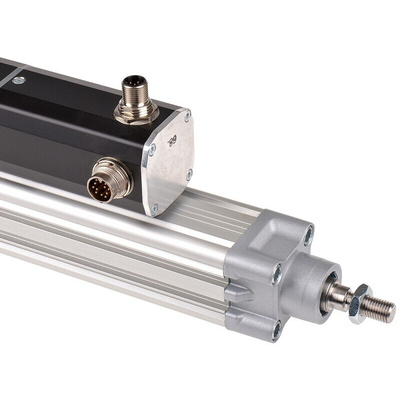

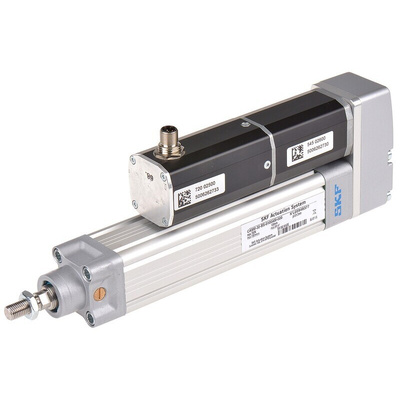

The CASM is a linear unit made of high grade material designed to withstand even the hardest conditions. This linear unit is available with ball screws, in different sizes and stroke lengths to fit a wide range of applications. Coupled with a motor, the CASM becomes an electromechanical device.
A feature of the CASM is its sealing system composed of seals providing IP54S protection, and a sintered filter compensating for pressure differences.

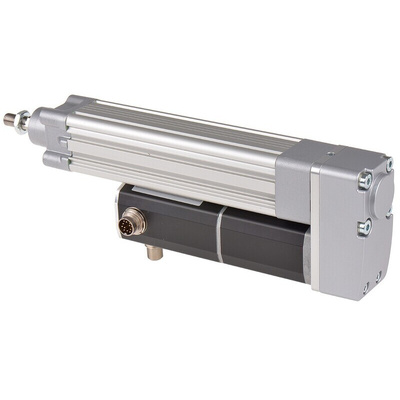

SKF offers diverse attachment options and several motor adapters (axial or parallel mount) to connect the motor of your choice. Such an advantage reduces the design and programming costs.

Whether your application requires high speed, heavy lifting or precision, CASM is the solution to meet your needs.

Features and Benefits

•Easy integration and fast assembly
•Multi-option modular system
•Highly energy efficient
•Highest levels of precision and repeatability
•Compact size
•Integrated motion controller
•Programmable with drive assistant
•PLC interface
•Integrated brake
•Lubricated for life
•Built-in encoders
•High-quality ball screws

Product Application Information

Electromechanical systems have a higher efficiency, and can be used to replace pneumatic systems. Parameterise the cylinder by using the SKF Drive Assistant software and benefit from variable speed, high positioning accuracy, high force and long lifetime. The highly efficient electric cylinder helps to increase productivity with less energy consumption and therefore less CO₂ emissions.
After the parameterisation, the DC powered cylinder can be operated independently by PLC or switches. The motion controller is already built in.
The electromechanical solution offers many benefits such as tremendous energy savings, less contamination, noise and maintenance. Therefore, using an electromechanical solution leads to important cost savings and makes it a better choice for most applications.

•Robots
•Handling machines
•Packaging
•Sorting systems
•Cutting machines

CASM Calculation Tool

A CASM calculation tool is also available at http://www.skf.com/group/knowledge-centre/engineering-tools/skfactuatorselect.html

Standards

ISO

Warning

Power cable CASM 32 (8802107 or 8802100), CASM 40 (1223468 or 1223469) and Drive Assistant (8802097) supplied separately

SKF Easy 3, CARE 33, MATRIX, CASM and CAHB Actuators

Compact design
Overload protection
Various stroke lengths and movement of loads up to 50kg
Ideally suited to opening and closing doors, flaps and windows which are not within easy reach of users
Can be operated without limit switches

CASM-32-BS-0100-AM Datasheet
