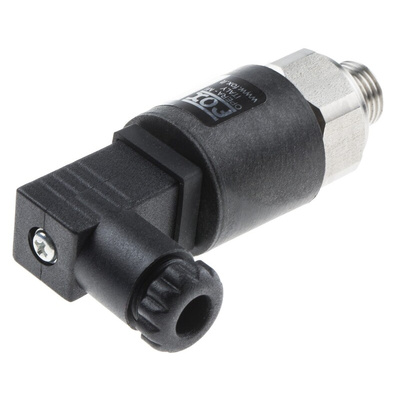

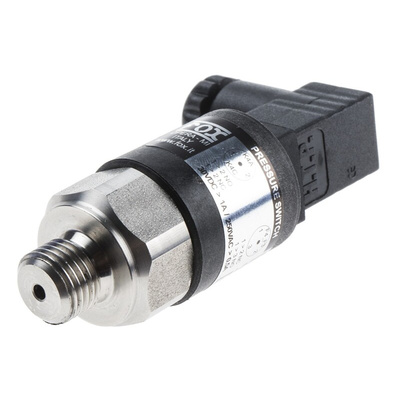

RS PRO Pressure Switch, 1/4 in BSP Male 1bar to 12 bar

RS PRO Pressure Switch, 1/4 in BSP Male 1bar to 12 bar

You can use this pressure switch from RS PRO in either hydraulic or pneumatic systems. It will supply an electrical signal once the system has reached a pre-set pressure.

You can easily set the switching pressure by turning a screw in the centre of the switch – clockwise to increase the pressure setting and ant-clockwise to decrease it. What's more, it mounts in any orientation. The device is fitted with a mechanical stop to prevent damage from over-pressurisation. It's accurate to within 4% of set pressure, has a DIN (Deutsches Institut für Normung, the German Institute for Standardisation) 43650 electrical connection and fits into a 1/4 in thread. It's also IP65-rated, meaning it's protected from dust and water spray.

Pressure switches such as this one are commonly found in applications including well water pumps, electronic gas compressors and aircraft cabin pressure alarms.

Features and Benefits

• Pressure switch
• G thread standard
• Adjustable type
• Suitable for use with liquids or gases
• 1/4 in threaded connection
• Normally open and normally closed contacts offer versatility
• Male thread
• Maximum operating pressure 12 bar
• Maximum operating temperature of +85˚C
• Minimum operating temperature of -25˚C
• Maximum operating pressure of 25 bar
• Minimum operating pressure of 1 bar
• Minimum pressure setting of 0 bar
• IP65-rated as dust-tight and resistant to water spray
• Manufacturer series F4
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
