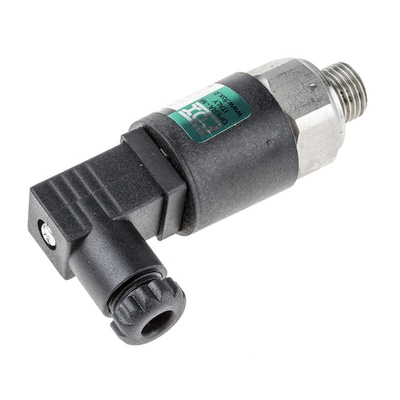

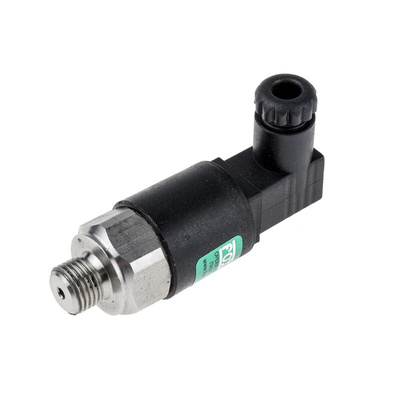

RS PRO Pressure Switch, 1/4 in BSP Male 0.2bar to 2.5 bar

RS PRO Pressure Switch, 1/4 BSP Male, 0.2 bar to 2.5 bar

This RS PRO pressure switch connects to a standard male 1/4 inch British Standard Pipe (BSP) socket and has a microswitch that closes when a specific pressure is reached. You can easily set the appropriate triggering pressure by adjusting a screw on the rear of the assembly.


The switch's in-built mechanical stop ensures the system is protected if any over-pressurisation occurs, though it's recommended to keep your system under 2.5 bar. Its sensor housing has an IP65 rating, which means it's suitable for all-weather outdoor use but not for immersion in water.


For added versatility, the microswitch can be used as either a normally open or normally closed switch. Thanks to its 10% hysteresis, it reduces switch bounce on the output signal to prevent multiple triggers.

Features and Benefits

• Operating temperature range of -25°C to +85°C


• Operating pressure range of 0.2 to 2.5 bar


• Connection is a male 1/4 in BSP (British Standard Pipe)


• G connection thread standard


• NC (Normally Closed) and NO (Normally Open) contact operation


• IP65 rated


• No LED indicator


• Pressure setting range of 0 to 25 bar


• Suitable for fluids


• Adjustable type


• Voltage rating of 250 V AC
