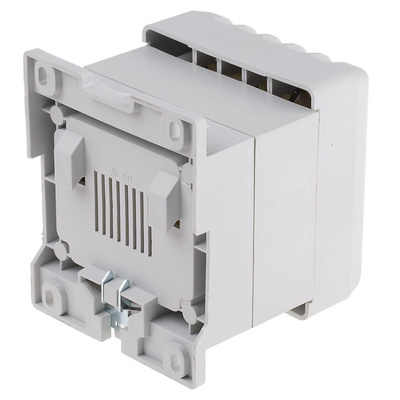

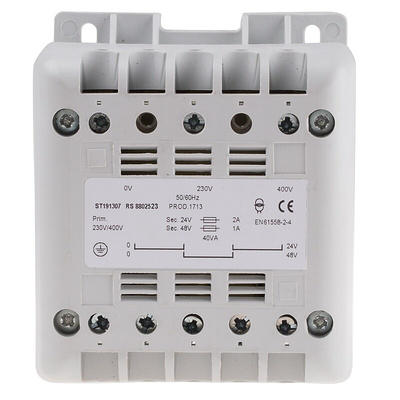

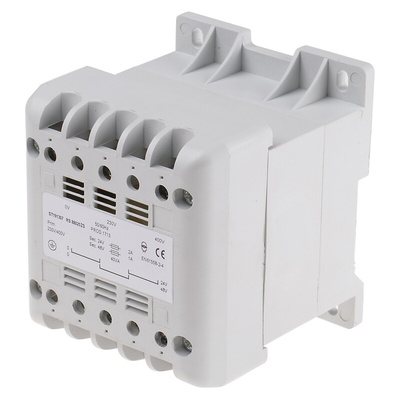

RS PRO 40VA DIN Rail Transformer, IEC 61558-2-6, 400V ac Primary, 24V ac Secondary

RS PRO 40 VA Control Panel Transformer, 400 V AC Primary, 24 V AC Secondary

Use this control panel transformer from RS PRO to regulate voltage during short periods of inrush current or 'overload conditions'. The transformer provides enough secondary voltage stability to control overload conditions safely and efficiently in potentially hazardous working environments.

This compact transformer has a low weight of 1.4 kg. It's designed for DIN rail mounting (DIN stands for 'Deutsche Institut für Normung', or the German Institute for Standardisation). Voltage-rated at 400 V AC (primary), it has a secondary voltage rating of 24 V AC. The IP21 rating means it's protected against condensation and penetration from objects over 12 mm.

As part of our quality RS PRO series, this product has been exhaustively tested by engineers so you can be assured of its safety and reliability. It's typically found in a wide range of industrial environments such as building sites, workshops and factories.

Features and Benefits

• Control panel transformer
• Primary voltage rating of 400 V AC
• Secondary voltage rating of 24 V AC
• Power rating of 40 VA
• Mounted by DIN rail
• Dimensions of 106 mm (L) x 90 mm (W) x 87 mm (D)
• Minimum operating frequency of 50 Hz
• Maximum operating frequency of 60 Hz
• Maximum temperature of +130°C
• Weight of 1.4 kg
• IP21 rated for protection against condensation, objects over 12 mm
• Meets standard EN 61558-1 for safe power transformers and power supplies

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
