RS PRO 40VA DIN Rail Transformer, IEC 61558-2-6, 230V ac Primary, 24V ac Secondary

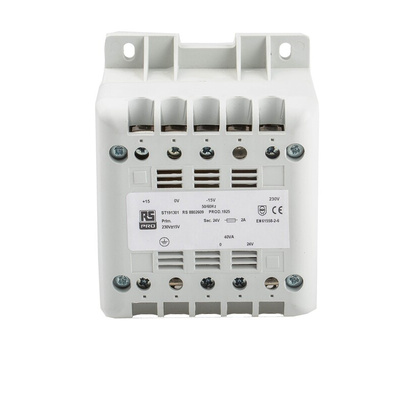

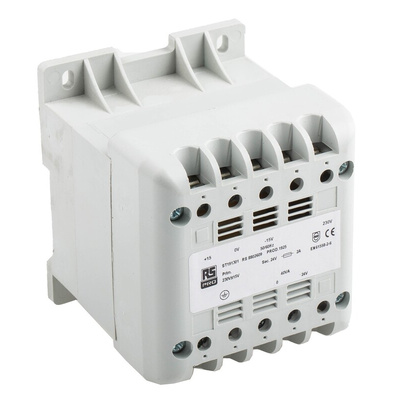

RS PRO 40 VA Panel Mount Transformer, 230 V AC Primary, 24 V AC Secondary

Use this panel mount transformer from RS PRO to isolate electrical appliances from the mains power supply. Transformers are used in a wide range of industrial environments, from factories to building sites, to protect against electrical overload and reduce the risk of electric shocks.

With a weight of only 1.5 kg, this transformer is lightweight and compact enough to be transported around worksites. The sturdy housing is IP21 rated for protection against condensation and objects larger than 12 mm. Panel mounted, you can fix it to an equipment panel or external enclosure with the minimum of effort.

As part of the quality RS PRO series, this product has been stringently tested for safety and consistency. It also conforms to the EN 61558-1 standard for safe power transformers and power supplies.

Features and Benefits

• Panel mount transformer
• Primary voltage rating of 230 V AC
• Secondary voltage rating of 24 V AC
• Power rating of 40 VA
• Mounted by DIN rail
• Dimensions of 106 mm (L) x 90 mm (W) x 95 mm (D)
• Minimum operating frequency of 50 Hz
• Maximum operating frequency of 60 Hz
• Maximum temperature of +130°C
• Weight of 1.5 kg
• IP21 rated for protection against condensation, objects over 12 mm
• Meets standard EN 61558-1 for safe power transformers and power supplies

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
